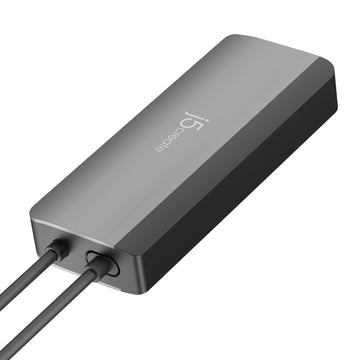

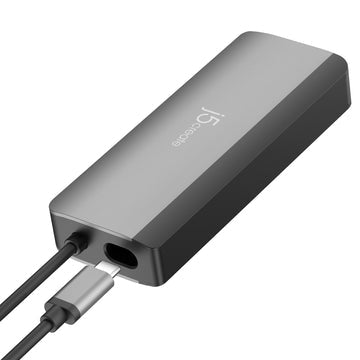

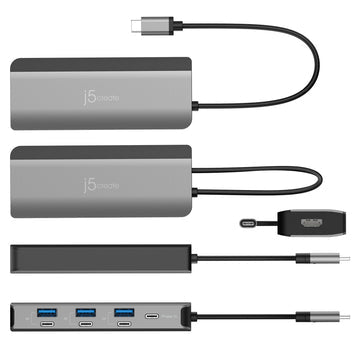

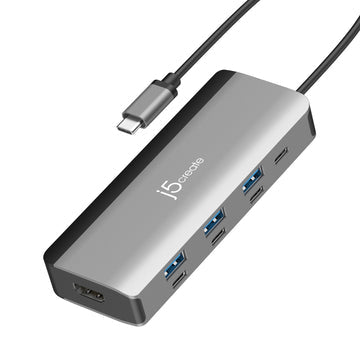

JCD362 Flexible Ports USB-C® 4K144 HDMI™ Hub - Slim 8 in 1, Black/Grey

Key Features

• Supports resolutions up to 4K @ 144 Hz

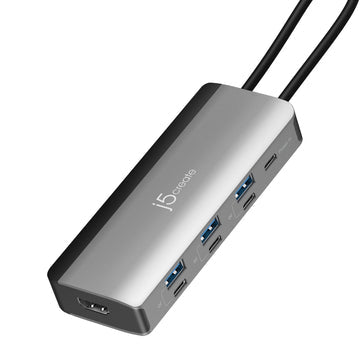

• Provides three USB™ Type-A ports and three USB-C® ports, USB-C® ports and Type-A ports either one.
• Supports up to PD 100W power in.
• Plug-and-play, no driver installation required

Description

This hub provides extra connectivity for your computer; featuring 4K144 HDMI™, six USB™ data ports, and PD pass through charging. Connect to three USB™ devices, choose either Type-C or Type-A for added flexibility. The multi-adapter’s small size makes it easy to carry and helps save desk space. The HDMI™ port allows you to connect to a 4K monitor or TV. Equipped with USB™ 3.2 Gen 1 support for transferring files. This hub is designed for ultimate convenience, allowing you to start using it right out of the package. With its plug-and-play functionality, there's no need for any driver installation, just plug it in and you're good to go.

Specifications

Ports & interfaces
Host interface	USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
HDMI ports quantity	2
Ports quantity	8
HDMI version	2.1
Cable length	0.2 m
Features
Country of origin	China
Product colour	Grey
Cable length	0.2 m
USB Power Delivery (USB PD)	Yes
Housing material	Aluminium, Acrylonitrile butadiene styrene (ABS)
USB Power Delivery up to	100 W
Maximum refresh rate	144 Hz
Supported graphics resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080 (HD 1080)
Host interface	USB Type-C
Power
Input current	5 A
Output voltage	20 V
Output current	4.25 A
Input voltage	20 V
Technical details
Product colour	Grey
Country of origin	China
Weight & dimensions
Weight	100 g
Width	47 mm
Depth	118 mm
Height	19 mm
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	142 g
Packaging data
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	142 g
Quantity per pack	1 pc(s)
Performance
USB Power Delivery (USB PD)	Yes
Export Control Classification Number (ECCN)	EAR99
Commodity Classification Automated Tracking System (CCATS)	8471.80.0000
Packaging content
Packaging content	1 - Flexible Ports USB-C 4K144 HDMI Hub - Slim 8 in 1 (JCD362) 1 - Quick Installation Guide (QIG)
Quick start guide	Yes
Design
Country of origin	China
Product colour	Grey
Cable length	0.2 m
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Logistics data
Master (outer) case width	118 mm
Master (outer) case length	199 mm
Master (outer) case height	117 mm
Products per master (outer) case	4 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795089787
Master (outer) case net weight	800 g
Commodity code	8471.80.0000
Other features
Packaging content	1 - Flexible Ports USB-C 4K144 HDMI Hub - Slim 8 in 1 (JCD362) 1 - Quick Installation Guide (QIG)
