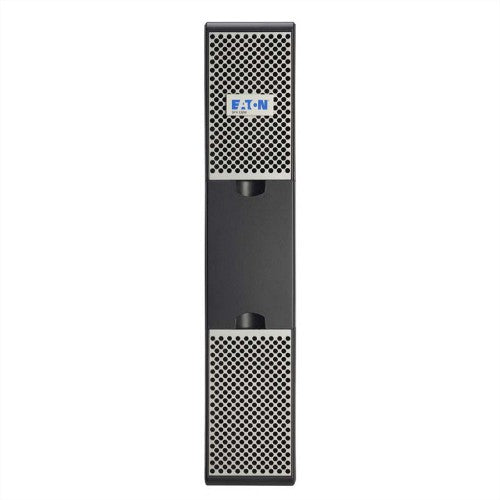

9PX EBM 2U 72V, for 1 & 1.5kVA UPS

Description

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	72 V
Number of battery cells	12
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Hot-swap battery	Yes
Product colour	Black
Compatibility	9PX 2200 (2U) / 9PX 3000 (2U)
Technical details
Harmonized System (HS) code	85044095
Certificates
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Weight & dimensions
Weight	39.2 kg
Width	440 mm
Height	86.5 mm
Depth	605 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Logistics data
Harmonized System (HS) code	85044095
