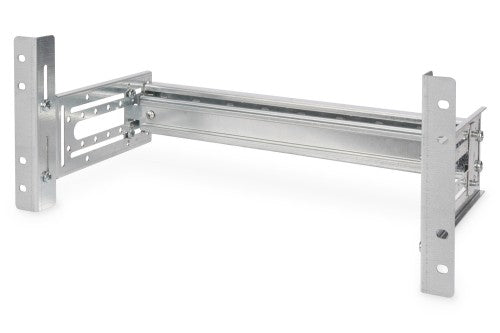

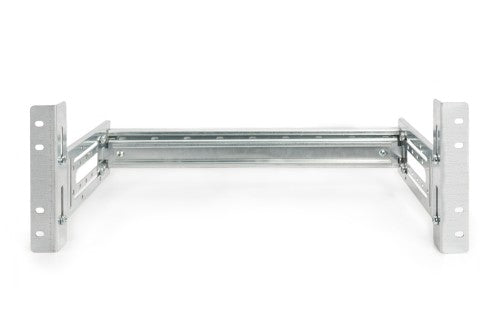

DIN rail holder, 4U, 178x483x223 mm, galvanized incl. din rail, variable depth and height

Key Features

• Galvanized sheet steel
• Load capacity: 20 kg

Description

- For quick, screwless mounting of 35 mm, top-hat DIN rail devices

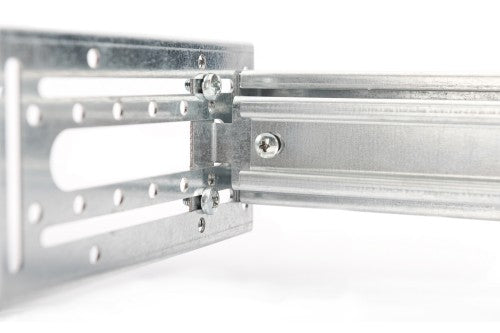

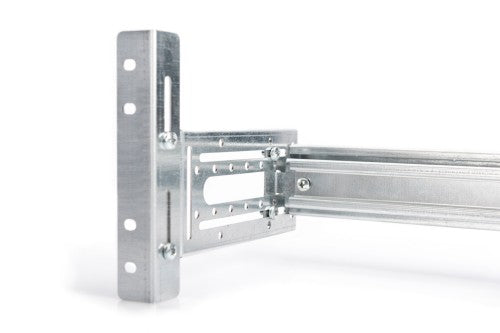

- Incl. built-in DIN rails according to DIN EN 60715 (HxW= 35x390 mm), depth-adjustable

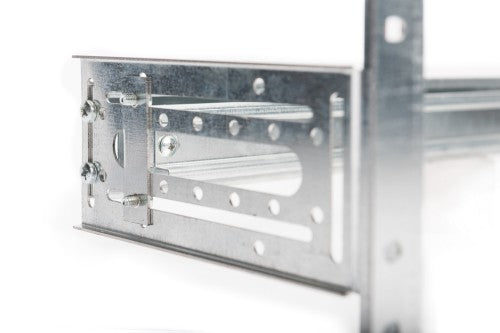

- Rear with height-adjustable C-rail for cable retention

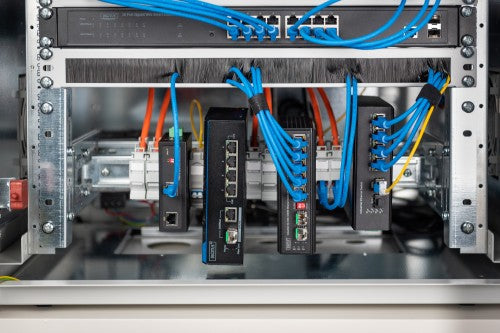

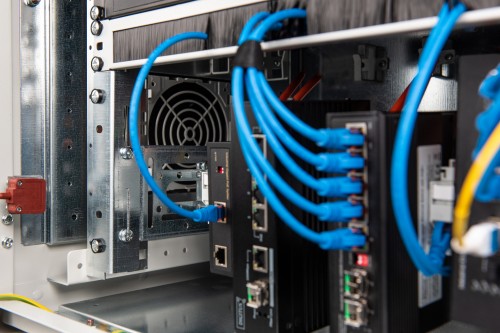

The 482.6 mm (19") rack-mount DIN rail panel (35 mm, top hat) accommodates DIN rail devices on a built-in DIN rail with a width of 390 mm. It is depth-adjustable and can also be rotated 90° upwards or downwards for horizontal device mounting if required. The rear has a height-adjustable C-rail with special attachment points for Velcro tape or cable ties, for example, for optimum cable routing. The entire support is height-adjustable for individual space requirements (the 4U mounting brackets are permanently installed in the enclosure).

Specifications

Technical details
Country of origin	Turkey
Rack capacity	4U
Material	Galvanized steel
Product colour	Silver

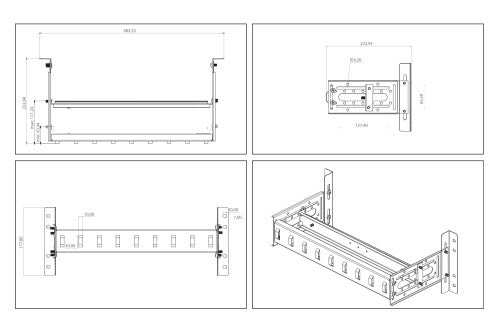

Weight & dimensions
Weight	1.6 kg
Width	483 mm
Depth	223 mm
Height	178 mm
Packaging data
Package volume	24000 cm³
Package width	500 mm
Package height	200 mm
Package depth	240 mm
Package weight	3.5 kg
