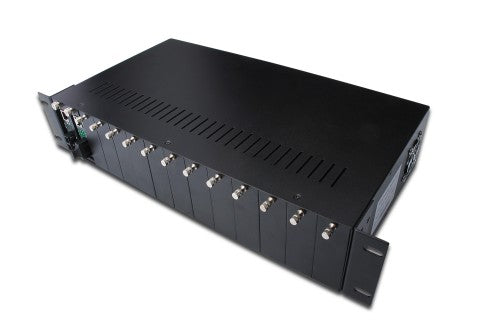

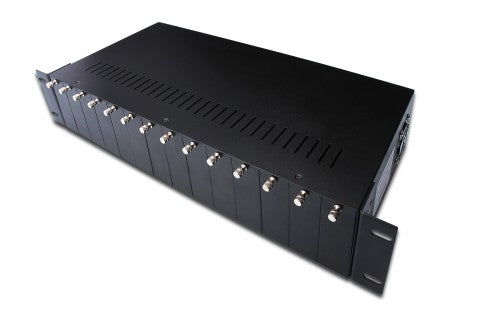

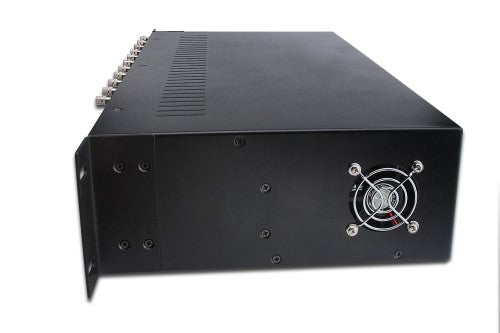

Media Converter Chassis, 14 Slots, 2U for DN-82x1x, DN-82x2x and DN-82x3x Series

Key Features

• Suitable for the Media Converter Series DN-82x1x, DN-82x2x and DN-82x3x

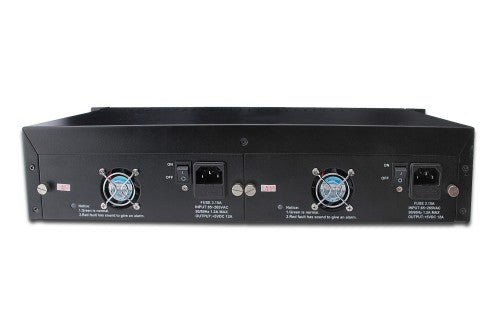

• Equipped with a second, redundant Power Supply for maximum stability and reliability
• Hot Swap Support for the Converters to ensure a flexible connection
• For up to 14 Media Converters
• Circuit Breaker for Overvoltage, Overflow and Short-Circuit
• 2 Height Units for 483mm (19")Rack Installation
• Dimensions (L x W x H): 231mm x 485mm x 90mm
• Operating temperature: 0 to 50 °C
• Storage temperature: -20°C ... +85°C

Description

The perfect solution for various media converters

The DIGITUS Media Converter Chassis let's you host up to 14 Media Converters in your Network or Server Cabinet. The great choice of Media Converters ensures highest flexibility. Every single module can be hot-swapped during the operation. The redundant Power Supply offers a smooth working and prevents any downtime of your network connection.

Specifications

Technical details
Country of origin	China
Rack capacity	2U
Size (imperial)	48.3 cm (19")
Number of slots	14
Dimensions (WxDxH)	485 x 231 x 90 mm
Product colour	Black
Power
AC adapter output voltage	5 V
Power requirements	85-265 VAC, 50/60 Hz, 1.2A
Operational conditions
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Width	485 mm
Height	90 mm
Depth	231 mm
Packaging data
Package width	400 mm
Package depth	560 mm
Package height	220 mm
Package weight	6.9 kg
Logistics data
UK Trade Tariff code	85176200
