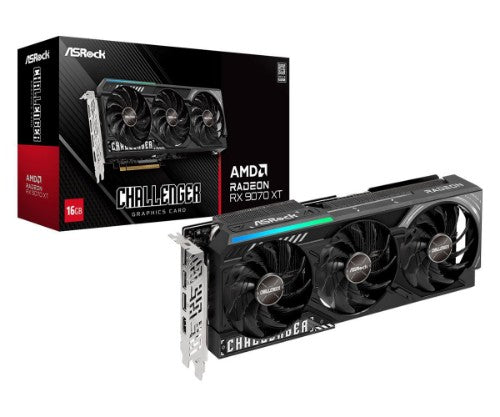

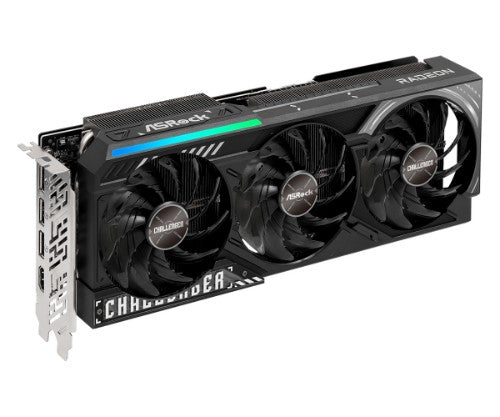

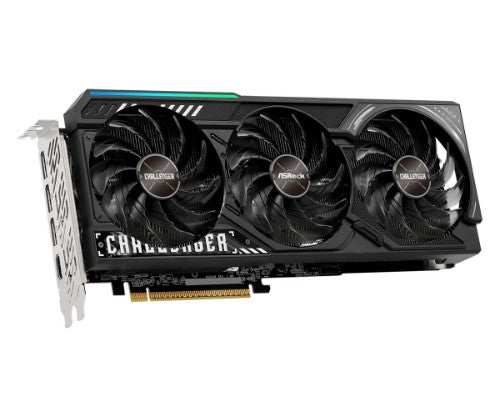

Radeon RX 9070 XT Challenger 16GB

Description

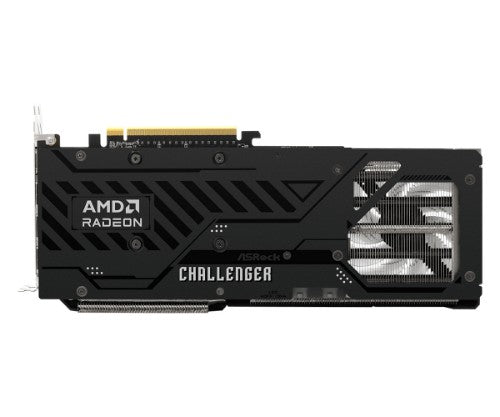

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

Honeywell PTM7950
Phase-change Thermal Pad
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.

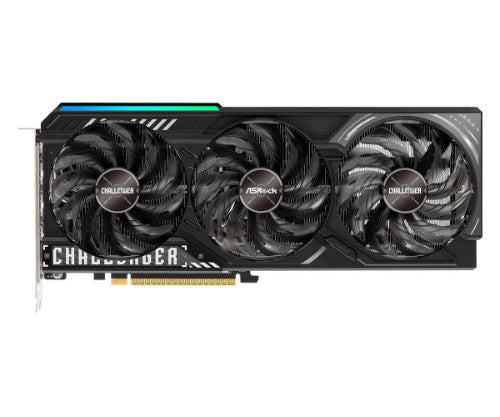

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

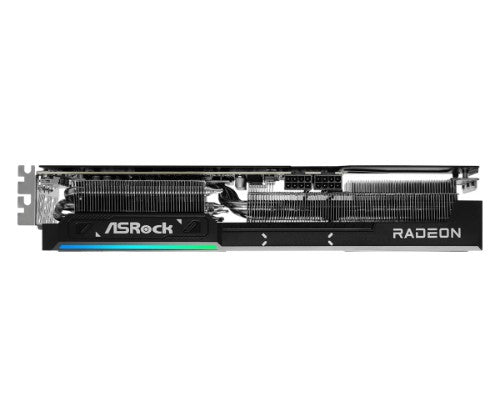

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	2970 MHz
Stream processors	4096
Maximum displays per videocard	4
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9070 XT
Compute units	64
Memory
Discrete graphics card memory	16 GB
Data transfer rate	20 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
Design
Number of fans	3 fan(s)
Illumination	Yes
Cooling type	Active
Product colour	Black
Power
Supplementary power connectors	2x 8-pin
Minimum system power supply	750 W
Technical details
Cooling type	Active
Product colour	Black
TV tuner integrated	No
System requirements
Minimum system power supply	750 W
Weight & dimensions
Weight	918 g
Height	1038 mm
Depth	56 mm
Length	290 mm
Packaging data
Package type	Box
Packaging content
Quick installation guide	Yes
