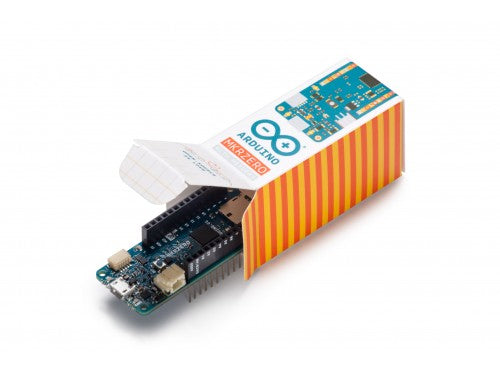

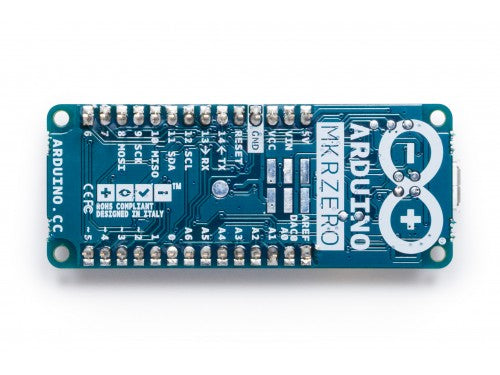

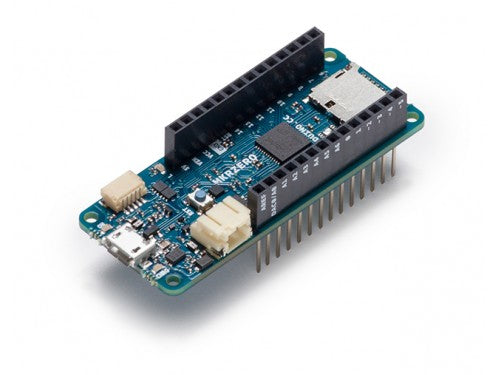

ARDUINO MKR ZERO (I2S bus & SD for sound, music & digital audio DATA)

Description

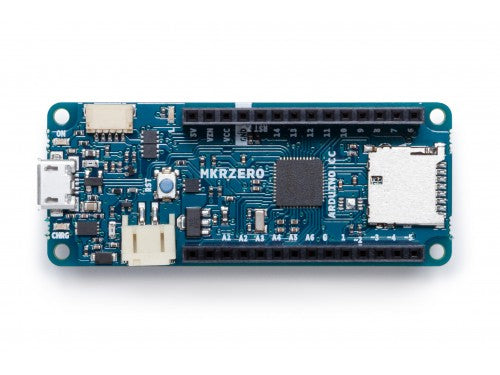

The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware! The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core.

Warning: Unlike most Arduino & Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.

Specifications

Processor
Processor model	ARM Cortex M0+
Memory
Memory clock speed	48 MHz
SRAM (Static Random Access Memory)	32 KB
Flash memory (microcontroller)	256 KB
Ports & interfaces
USB ports quantity	1
UART	Yes
I2C interface	Yes
Features
Form factor	Arduino
Board type	Compute module
DC current per I/O pin	7 mA
Power
DC current per I/O pin	7 mA
