16 GB, GDDR7, 256-bit, 2640 MHz boost clock, PCI Express 5.0 x16, 3x DisplayPort, 1x HDMI, 1x 16-pin, 2.5 slot, RGB

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• IceStorm 3.0 Advanced Cooling
• Vapor Chamber
• BladeLink Fans
• Reinforced Metal Mid-Frame
• FREEZE Fan Stop, Active Fan Control
• SPECTRA RGB Lighting
• Metal Backplate
• Bundled with GPU Support Bracket
• 12V-2x6 Safety Light

Description

The ZOTAC GAMING GeForce RTX™ 5080 SOLID CORE OC is a high-performance graphics card that excels in both gaming and content creation with a 2.5 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, and structural enhancements like an all-metal mid-frame, the SOLID CORE OC is the perfect blend of high performance and build flexibility.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2640 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5080
Memory
Discrete graphics card memory	16 GB
Data transfer rate	30 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7

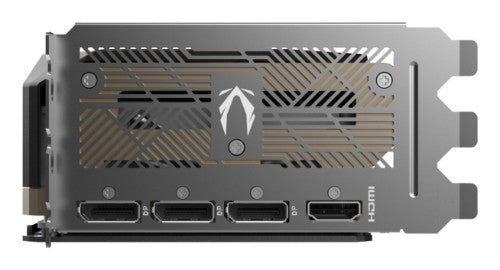

Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	10752
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Fan diameter	9 cm
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Number of slots	2.5
Bracket height	Full-Height (FH)
Cooling technology	Zotac IceStorm 3.0
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	850 W
Power consumption (max)	360 W
Weight & dimensions
Number of slots	2.5
Height	115.8 mm
Depth	55.7 mm
Length	303.5 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	207 mm
Package height	424 mm
Package depth	99 mm

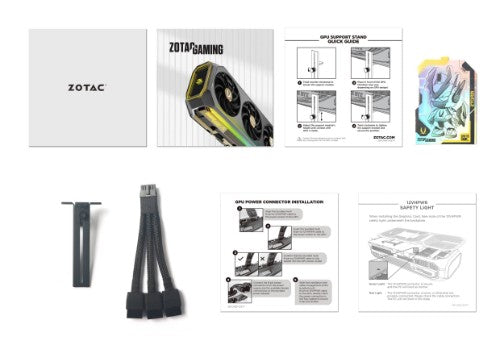

Packaging content
Quick installation guide	Yes
