16 GB, GDDR7, 256-bit, 2482 MHz boost clock, PCI Express 5.0 x16, 3x DisplayPort, 1x HDMI, 1x 16-pin, 2 slot

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• NVIDIA SFF-Ready GeForce Enthusiast Card
• White LED Lighting
• IceStorm 2.0 Advanced Cooling
• BladeLink Fans
• FREEZE Fan Stop, Active Fan Control

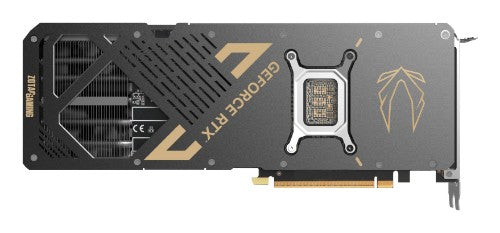

• Metal Backplate
• Bundled with GPU Support Bracket
• 12V-2x6 Safety Light
• All-new FireStorm Utility

Description

The ZOTAC GAMING GeForce RTX™ 5070 Ti SOLID SFF OC is a high-performance graphics card that excels in both gaming and content creation with a compact 2 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, the SFF OC is the perfect blend of high performance and build flexibility.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2482 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070 Ti
Memory
Discrete graphics card memory	16 GB
Data transfer rate	28 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	8960
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Fan diameter	9 cm
Illumination colour	White
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Number of slots	2
Bracket height	Full-Height (FH)
Cooling technology	Zotac IceStorm 2.0
SFF ready	Yes
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	750 W
Power consumption (max)	300 W
Weight & dimensions
Number of slots	2
Height	115.8 mm
Depth	41.6 mm
Length	304.4 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	750 W
Packaging data
Package type	Box
Package width	207 mm
Package height	424 mm
Package depth	99 mm

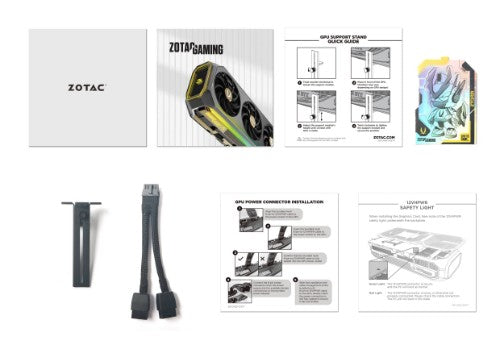

Packaging content
Quick installation guide	Yes
