16 GB, GDDR7, 256-bit, 2512 MHz engine clock, PCI Express 5.0 x16, 3x DisplayPort, HDMI, 1x 16-pin, ARGB

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• The ultimate ZOTAC GAMING GPU
• Infinity Mirror Design
• IceStorm 3.0 Advanced Cooling
• Larger Vapor Chamber
• BladeLink Fans
• FREEZE Fan Stop, Active Fan Control, Dual BIOS
• SPECTRA 2.0 RGB Lighting
• SPECTRA LINK Lighting Sync port

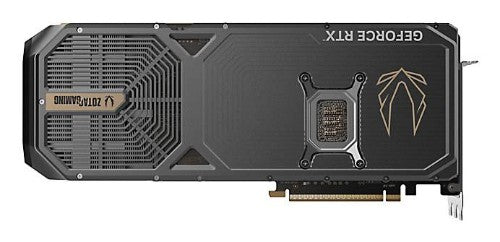

• Metal die-cast Backplate

Description

The ZOTAC GAMING GeForce RTX™ 5070 Ti AMP Extreme INFINITY offers a completely revamped gaming experience with a whole new approach to Graphics Card design, featuring NVIDIA's cutting-edge Blackwell architecture and features such as DLSS 4. With an elegant design punctuated by a gorgeous infinity mirror in the front, a reinforced mid-frame, and a vapor chamber larger than its predecessor, the AMP Extreme INFINITY gives you infinite possibilities for gaming, or applications beyond.

Specifications

Processor
Graphics processor family	NVIDIA
Processor frequency	2512 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070 Ti
Memory
Discrete graphics card memory	16 GB
Data transfer rate	28 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	8960
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Number of slots	3.5
Bracket height	Full-Height (FH)
Cooling technology	Zotac IceStorm 3.0
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	750 W
Power consumption (max)	300 W
Weight & dimensions
Number of slots	3.5
Height	137.5 mm
Depth	69.6 mm
Length	332.1 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	750 W
Packaging data
Package type	Box
Package width	282 mm
Package height	440 mm
Package depth	120 mm
Manual	Yes
Packaging content
Manual	Yes
Power cord included	Yes
