8 GB, GDDR7, 128-bit, 2632 MHz boost clock, PCI Express 5.0 x8, 3x DisplayPort, 1x HDMI, 1x 8-pin, 2 slot

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• 8-Pin PCIe power connector
• ​White LED lighting
• SFF-Ready Graphics Card
• Compact dual-fan form factor
• IceStorm 2.0 Cooling
• BladeLink Fans
• FREEZE Fan Stop
• Metal Backplate
• All-new FireStorm Utility

Description

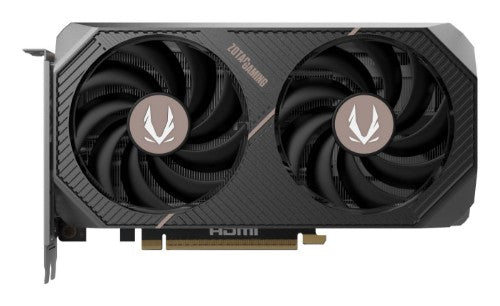

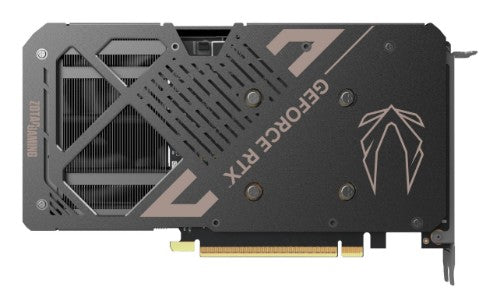

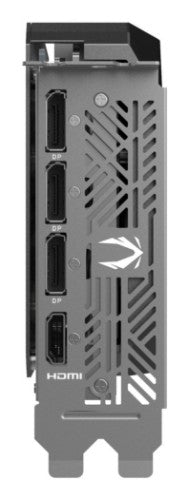

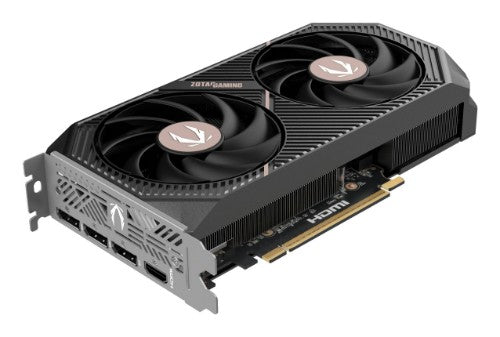

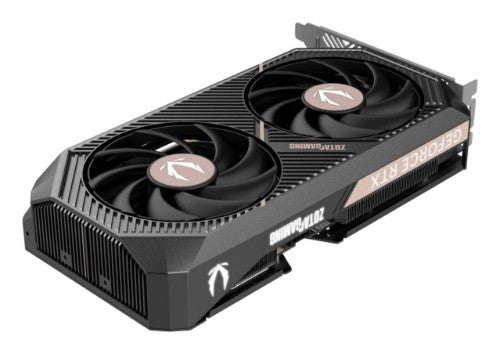

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB AMP is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC as well as a solid cooling solution, the AMP is ready to take on the latest title releases with smooth framerates and performance.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2632 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	4608
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5060 Ti
Memory
Discrete graphics card memory	8 GB
Data transfer rate	28 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x8 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	4608
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	2 fan(s)
Fan diameter	9 cm
Illumination colour	White
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black
Number of slots	2
Cooling technology	Zotac IceStorm 2.0
SFF ready	Yes
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	600 W
Power consumption (max)	180 W
Weight & dimensions
Number of slots	2
Height	120.2 mm
Depth	41.6 mm
Length	220.5 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	600 W
Packaging data
Package type	Box
Package width	218 mm
Package height	283 mm
Package depth	83 mm
Manual	Yes
Packaging content
Manual	Yes
