100-20kHz, 99d, 5.7/1.1", 8Ω, ф294 × 125.8mm

Key Features

• • Innovative Coaxial Structure
• • Acoustically tuned design for speech
• • PoE-Enabled Active Speaker
• • Versatile Deployment
• • Sophisticated Design

Description

Low-Profile 2-Way Coaxial Ceiling Loudspeaker

CS10/CS10-D
The CS10/CS10-D ceiling speaker is available in two editions to suit various needs:
CS10-D Dante edition
CS10 General edition
eaturing support for the Dante audio transmission protocol, the CS10-D seamlessly integrates with a wide range of standard Dante devices, delivering a versatile and convenient collaborative experience.

Practical and Aesthetic Integration

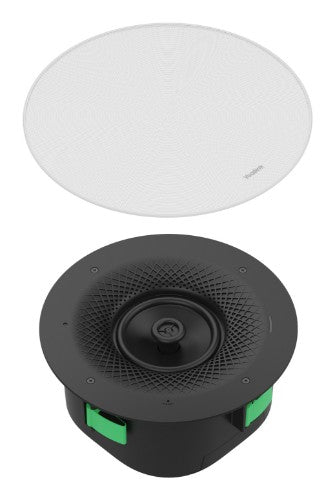

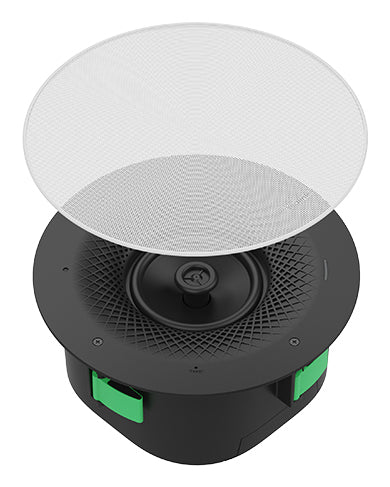

The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.

Specially Designed for Conference Space
The CS10/CS10-D boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.

Video Conferencing Perfected
CS10/CS10-D was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.

Versatile Adaptability

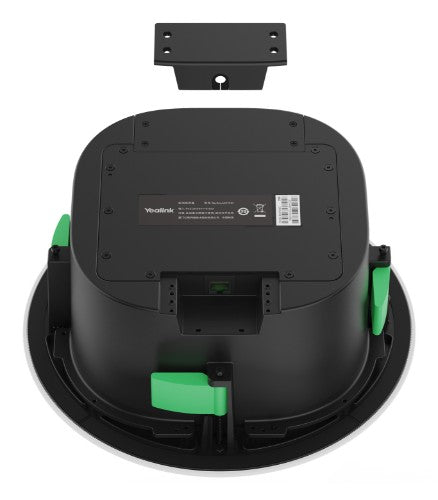

CS10/CS10-D provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.

Specifications

Loudspeakers
Speaker type	2-way
Tweeter	Yes
Woofer	Yes
Tweeter diameter (imperial)	2.79 cm (1.1")
Woofer diameter (imperial)	14.5 cm (5.7")
Tweeter diameter	2.8 cm
Woofer diameter	14.5 cm
Recommended usage	Universal
Audio output channels	2.0 channels
Number of speakers	1
Audio
Frequency range	100 - 20000 Hz
Impedance	8 Ω
Sensitivity	88 dB
Sound pressure level (max)	99 dB
Beamwidth	0 - 120°
Performance
Product colour	Black, Grey, White
Recommended usage	Universal
Number of speakers	1
Market segment	Professional
Technical details
Speaker type	2-way
Product colour	Black, Grey, White
Quantity per pack	1 pc(s)
Design
Product colour	Black, Grey, White
Ports & interfaces
Connectivity technology	Wired
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Other features
Audio output channels	2.0 channels
