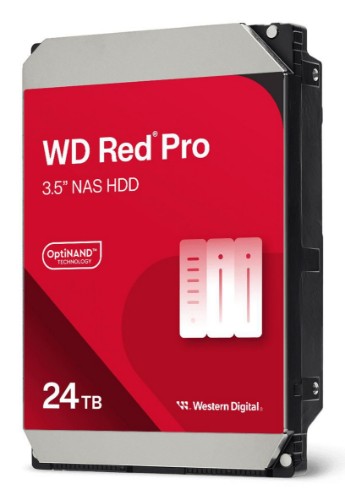

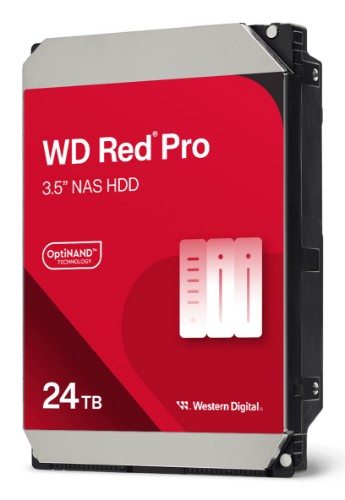

24 TB, 7200 rpm, SATA, 3.5'', 287MB/s, 512MB

Key Features

• Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
• For RAID-optimized NAS systems with an unlimited number of bays
• Rated for 550TB/year workloads and up to 2.5M hours MTBF

Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.
WD Red Pro drives are engineered to handle high-intensity workloads in 24×7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.

Optimized for NAS with NASware™
Western Digital’s exclusive NASware™ technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.

Designed for Continuous Operation
WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.

Tested for Dependable Compatibility
Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.

Protected against Excessive Vibration
WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.

Built to Absorb Shock
WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.

Engineered with Industry-Leading Technology
WD Red Pro 22TB, 24TB and 26TB hard drives feature Western Digital’s proprietary OptiNAND™ technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.

Specifications

Hard drive
Component for	PC
Workload rate limit	550 TB/year
HDD average transfer rate	287 MB/s
Hybrid-HDD cache memory	512 GB
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	24 TB
Features
Type	HDD
Component for	PC
Workload rate limit	550 TB/year
HDD average transfer rate	287 MB/s
Hybrid-HDD cache memory	512 GB
Interface	Serial ATA
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	24 TB
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Warranty period	5 year(s)
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), KC, RCM, TÜV mark, UKCA, UL, VCCI
Interface	Serial ATA
Weight & dimensions
Width	101 mm
Height	26 mm
Depth	147 mm
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA
Warranty period	5 year(s)
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), KC, RCM, TÜV mark, UKCA, UL, VCCI
