PCI Express, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz, AC600, WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE

Key Features

• AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)

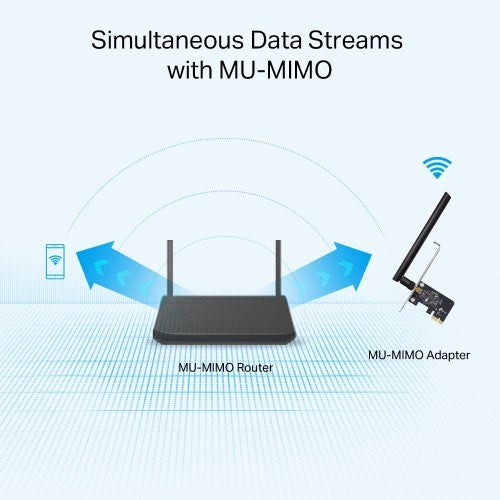

• MU-MIMO Supported – Boost network throughput and efficiency when working with a compatible MU-MIMO router
• Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with a powerful signal-boosting high-gain antenna
• WPA3 Supported – Improve cybersecurity with more secure and individualized protection
• Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design

Description

Upgrade Your Desktop with Advanced AC WiFi
AC600 Wireless Dual Band PCI Express Adapter

WiFi for All Your Online Needs
Archer T2E provides your PC with WiFi capability and receives WiFi signals on two separate bands. It can even work as a WiFi hotspot, sharing internet with other WiFi devices. Choose 2.4 GHz for browsing, email and social media, or switch to 5 GHz for gaming and streaming.

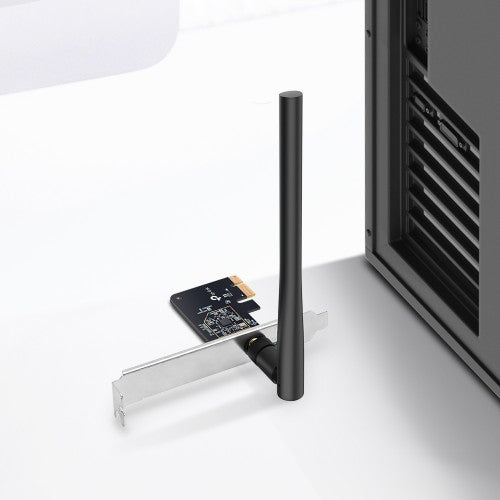

Broader Coverage with High-Gain Antenna
Powerful signal-boosting high-gain antenna significantly extends your existing WiFi reception, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Improved Security with WPA3
The latest WiFi security protocols bring new capabilities to improve cybersecurity, safeguarding your home WiFi. It provides more secure and individualized encryption for personal password safety and enhanced protection against brute-force attacks.

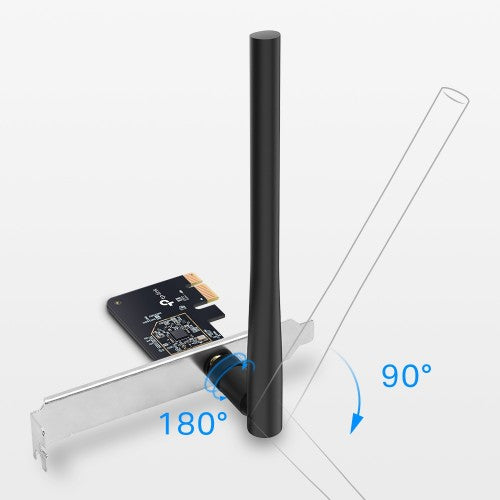

Adjustable,
Multi-Directional Antenna
Adjust the antenna to the perfect position to suit any
environment. Replace the detachable antenna with a
diverse range of indoor or directional antennae to
further enhance your wireless coverage.

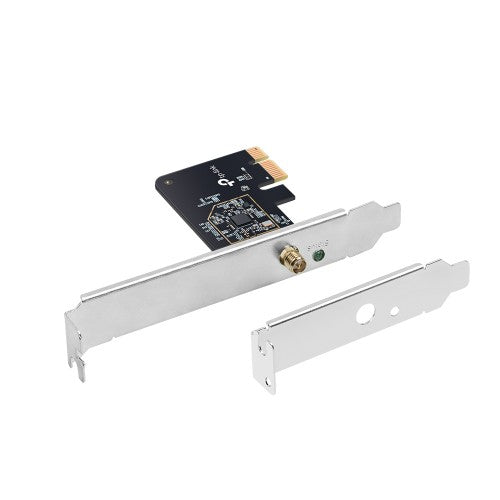

Flexible Design, Easy Setup
Standard and low profile brackets let you find the optimal bracket for your tower. With 3 simple steps, enjoy fast WiFi after a quick, hassle-free installation.

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	433 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,200,433 Mbit/s
Antenna
Antenna	Yes
Technical details
Product colour	Black, Silver
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
WLAN data transfer rates supported	11,54,200,433 Mbit/s
Maximum data transfer rate	433 Mbit/s
Design
Product colour	Black, Silver
Antenna	Yes
Internal	Yes
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	18 dBm
Operating modes	Infrastructure mode
Component for	PC
Antenna design	External
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	120.8 mm
Depth	78.5 mm
Height	21.5 mm
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	160 g
Security
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Packaging data
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	160 g
Mounting brackets included	Yes
Quick installation guide	Yes
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Resource CD	Yes
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
