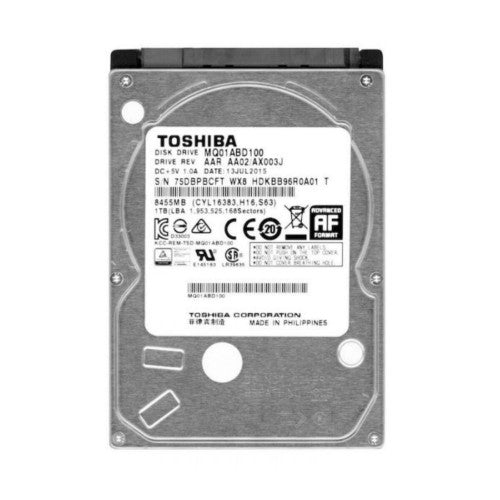

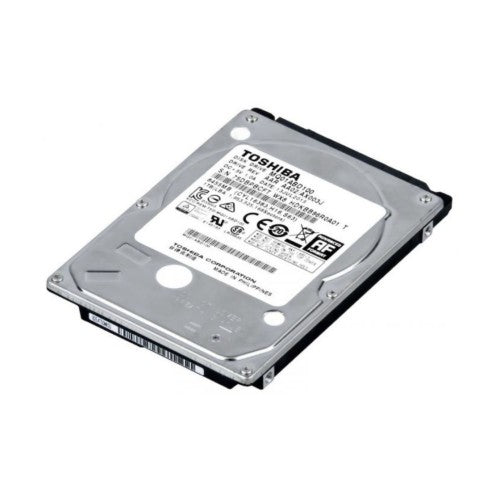

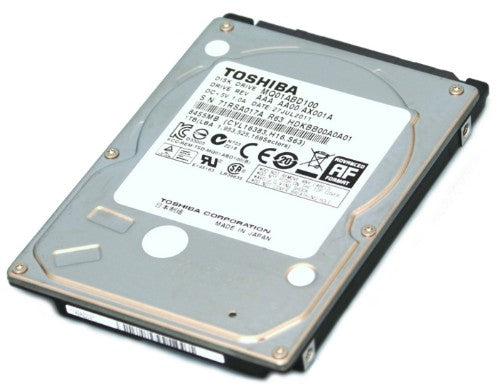

1000GB, 2.5'', 5400rpm, SATA, 8MB, SMART

Description

Toshiba Storage Device Division offers a line of 5,400 RPM 2.5-inch HDDs in a new slim design optimized for industry-leading storage applications. The latest HDD series, MQ01ABDxxx, provides a wide capacity range from 250 GB to 1TB in a 9.5-millimeter-high design with only maximum 2 platters.
The advanced MQ01ABDxxx targets markets such as portable multimedia and gaming notebooks, mobile workstations and other capacity-hungry applications like external HDDs. In addition, the drives also feature very good power efficiency value of 0.00055 for the 1TB model. Due to the “Silent-Seek” technology featured in these drives, the HDDs are extremely quiet: Ultra-silent single-platter drives boast acoustic specifications of 19dBA (seek) and 17dBA (idle) making them almost indistinguishable to the human hear.
With its compact size and best-in class specifications, the SATA MQ01ABDxxx series is the perfect choice for use in devices where a combination of sleek form factor and high capacity capabilities are essential.
As with all Toshiba HDDs, the complete series is halogen-free and RoHS compatible, therefore, exceptionally environmentally friendly.

Specifications

Hard drive
Data transfer rate	3 Gbit/s
Track to track seek time	2 ms
Bytes per sector	512
HDD number of heads	4
SMART technology	Yes
Certification	RoHS
HDD speed	5400 RPM
HDD size	2.5"
HDD capacity	1 TB
Sound emission
Acoustic pressure emissions	24 dB
Certificates
Certification	RoHS
Features
Interface	Serial ATA
Track to track seek time	2 ms
Bytes per sector	512
HDD number of heads	4
SMART technology	Yes
Certification	RoHS
HDD speed	5400 RPM
HDD size	2.5"
HDD capacity	1 TB
Storage drive buffer size	8 MB
Average seek time	12 ms
Power
Power consumption (typical)	4.5 W
Power consumption (standby)	0.18 W
Power consumption (write)	1.5 W
Power consumption (read)	1.5 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating altitude	-300 - 3000 m
Non-operating altitude	-300 - 12000 m
Operating vibration	1 G
Operating shock	400 G
Non-operating vibration	5 G
Non-operating shock	900 G
Technical details
Interface	Serial ATA
Seek time	22 ms
Product colour	Silver
Internal	Yes
Weight & dimensions
Width	69.8 mm
Weight	117 g
Height	9.5 mm
Depth	100 mm
Other features
Interface	Serial ATA
Seek time	22 ms
Product colour	Silver
Data transfer rate	3 Gbit/s
Certification	RoHS
Internal	Yes
Acoustic pressure emissions	24 dB
