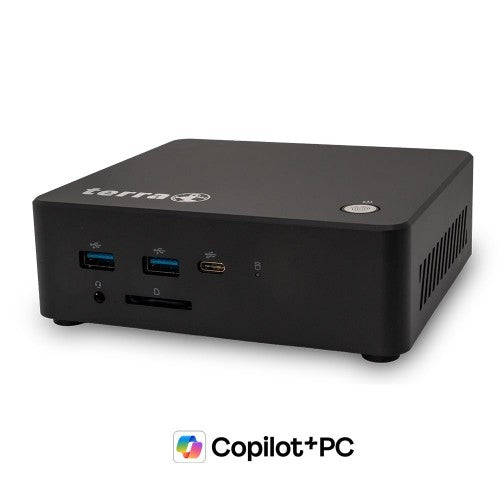

TERRA PC MICRO 7000A, AMD Ryzen™ AI 7, 350, 16 GB, 500 GB, Windows 11 Pro, 64-bit

Description

TERRA PC MICRO 7000A. Processor family: AMD Ryzen™ AI 7, Processor model: 350. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: AMD Radeon 860M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Micro PC. Product type: PC. Product colour: Black

Specifications

Processor
Processor cache type	L2 & L3
Processor model	350
Number of processors installed	1
Processor manufacturer	AMD
Processor boost frequency	5 GHz
Processor socket	FP8
Processor threads	16
Processor cores	8
L3 cache	16 MB
L2 cache	8 MB
Processor family	AMD Ryzen™ AI 7
Performance cores	4
Efficient cores	4
Performance-core base frequency	2 GHz
Efficient-core base frequency	2 GHz
Processor base power	28 W
Maximum turbo power	54 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	5 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	66 TOPs
NPU performance up to	50 TOPs
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Storage
Storage media	SSD
Number of storage drives supported	2
RAID support	No
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	500 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	500 GB
Storage options	2x M.2 2280 PCIe Gen4x4
SSD form factor	M.2
Total SSDs capacity	500 GB
NVMe	Yes
Graphics
Discrete graphics card	No
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	1
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon 860M
Resolution description	HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K)
On-board graphics card cores	8
On-board GPU manufacturer	AMD
Performance
Market positioning	Medical
Product type	PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	100,1000 Mbit/s
WLAN controller model	Intel Wi-Fi 6E AX210
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
LAN controller	Realtek RTL8111H, Realtek RTL8125-BG
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	1
DC-in jack	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Thunderbolt 4 ports quantity	2
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	65 W
Power consumption (typical)	5 W
Power consumption (standby)	0.82 W
Power consumption (off)	0.26 W
Technical details
Cable lock slot type	Kensington
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Micro PC
Audio system	High Definition Audio
Cooling type	Active
Storage options	2x M.2 2280 PCIe Gen4x4
Resolution description	HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K)
Locale	International repository
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Micro PC
Cooling type	Active
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Display
Display included	No
Audio
Audio system	High Definition Audio
Operational conditions
Operating relative humidity (H-H)	10 - 75%
Operating temperature (T-T)	5 - 35 °C
Weight & dimensions
Width	130 mm
Depth	140 mm
Height	48.3 mm
Weight	650 g
Packaging content
AC adapter included	Yes
VESA mount included	Yes
Cables included	AC
Manual	Yes
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
Cooling type	Active
Storage options	2x M.2 2280 PCIe Gen4x4
Resolution description	HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K)
Locale	International repository
Power consumption (off)	0.26 W
