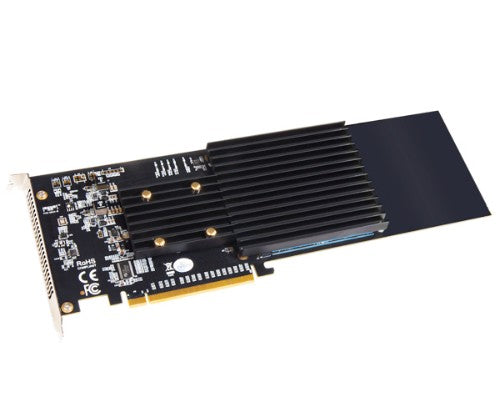

M.2 4x4 Silent PCIe Card, 4 x M.2 NVMe SSD Slots

Key Features

• Compatible with 2019 Mac Pro
• Adds Ultra-Fast SSDs to Your System
• Achieve Sustained RAID 0 speeds up to 11,700 MB/s
• Great Way to Add Up to 32TB of M.2 SSD Storage to Computers with Thunderbolt
• macOS, Windows, and Linux RAID Support
• macOS Boot Support from Single (non-RAIDed) SSDs
• S.M.A.R.T. Support
• Designed in the USA

Description

Install up to Four M.2 NVMe SSDs into a PCIe Card Slot – Ultra-speed Data Transfers!

If you need to add internal storage to your computer and ultra high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Individually, M.2 NVMe PCIe SSDs offer tremendous performance, but Sonnet’s M.2 4x4 PCIe Card enables you to mount up to four of them into a single x16 card slot.

Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro® tower; Windows® or Linux® PC desktop or server; or Thunderbolt™ to PCIe card expansion system with an available x16 PCIe slot. Are you an Adobe After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer's onboard storage couldn’t keep up! Legacy Mac® users can install macOS® on one SSD to create an incredibly fast boot drive and create a RAID 0 set with the other installed SSDs and still obtain blazing-fast performance. No matter how you use it, this card can transform the way you work.

Full Performance Design – Sonnet Advantages

Sonnet’s M.2 4x4 PCIe card is a full-height, full-length PCIe 3.0 card with a 16-lane (x16) interface, designed to support full performance from four SSDs. Unlike “similar” adapter cards, the M.2 4x4:

- Features a 16-lane (x16) and devotes four lanes of PCIe 3.0 bandwidth to every SSD you install (instead of limiting the x4 bandwidth to two SSDs at a time)
- Is Mac, Windows®, and Linux® compatible
- Works with a wide variety of single- and double-sided M.2 PCIe SSDs
- Is self-contained and doesn’t require a specific motherboard to operate or specific SSDs to support RAID features; no PCIe bifurcation required

Specifications

Ports & interfaces
Internal	Yes
Output interface	M.2
Host interface	PCIe
NVMe	Yes
Expansion card form factor	Full-height / Full-length
Expansion card standard	PCI 3.0
Performance
Product colour	Black, Grey
NVMe	Yes
S.M.A.R.T. support	Yes
Colour
Product colour	Black, Grey
Design
Country of origin	United States
Internal	Yes
Product colour	Black, Grey
Number of expansion slots	4
Features
S.M.A.R.T. support	Yes
NVMe	Yes
Technical details
Quantity per pack	1 pc(s)
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
