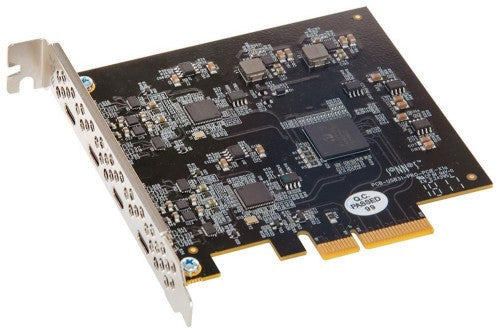

Allegro USB-C 4-Port PCIe (USB 3.1 Gen 2 PCIe Card with 7.5W per Port)

Key Features

• Adds Four 10Gbps USB-C (USB 3.1 Gen 2) Ports to Your Computer
• Supports USB-C Bus-powered Devices with up to 7.5W (3.0A) Power per Port
• Compatible with Mac, Windows, and Linux
• Provides Independent Power Regulation for Each Port
• Resettable Device Overcurrent Fuses Protect the Card and Computer
• Supports Storage, Hubs, and Other USB-IF Compliant USB Devices
• Supports Hot-swappable Device Connection

Description

Add Four SuperSpeed+ 10Gbps USB-C Connections to Your Mac Pro Tower, Windows PC, Linux Computer, or Thunderbolt to PCIe Card Expansion System

Equipped with SSDs, the fastest USB drives you can buy today are capable of 800 MB/s data transfers—many are bus-powered, too. But, most desktop computers (even new models) include generations-old USB interfaces that will throttle that performance and may not offer adequate power to allow bus-powered drives to operate. Break through the bottleneck—install Sonnet’s Allegro USB-C 4-Port PCIe card to support your fast USB drives at maximum performance.

Allegro USB-C 4-Port PCIe: Up to Twice as Fast as USB 3.0 Cards

The Allegro USB-C 4-Port PCIe supports data transfers at up to twice as fast as USB 3.0, and can also deliver 7.5W of power per port to USB-C bus-powered devices.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	4
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Host interface	PCIe
Technical details
Bandwidth	20 Gbit/s
Performance
Bandwidth	20 Gbit/s
Design
Internal	Yes
Features
Bandwidth	20 Gbit/s
