Intel N150, 1 x SO-DIMM DDR5-4800, 1 x 2.5" SATA III / 1 x M.2-2280M, Dual 2.5G LAN, 65W

Key Features

• Fanless 1.3L-PC supports 24/7 operating
• Dual LAN (2x 2.5Gbit) , 2x COM (RS232) , VESA
• HDMI, Display Port and VGA

Description

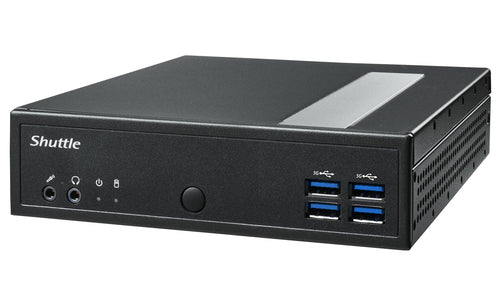

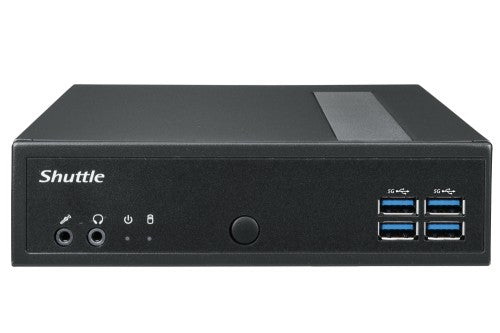

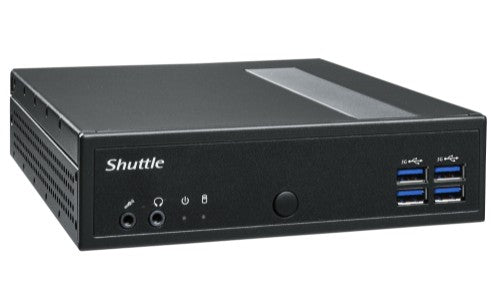

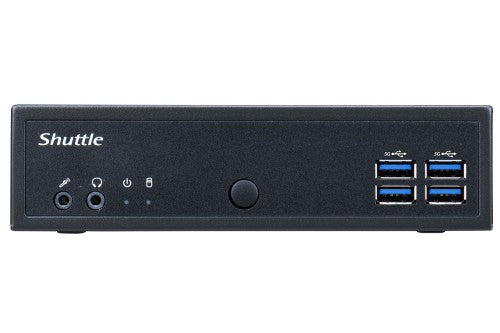

Silence meets performance. The Shuttle XPC slim Barebone DL40N is the sophisticated successor to the proven DL30N, engineered for environments where reliability and silence are non-negotiable. Powered by the energy-efficient Intel "Twin Lake-N" N150 processor, this fanless 1.35-litre PC is the ideal foundation for slimline workstations, robust edge computing, or high-availability client/server setups.

Connectivity is at the heart of the DL40N. Featuring dual Intel 2.5G LAN ports for high-speed networking and an optional 4G upgrade, it ensures seamless integration even in mobile or remote applications. The integrated Intel UHD Graphics supports hardware acceleration for 4K video playback across three independent displays (HDMI, DisplayPort, VGA), making it a versatile choice for digital signage and multi-monitor office environments.

Designed for 24/7 continuous operation and encased in a durable metal chassis, the DL40N remains noiseless when paired with an SSD. Whether it’s for industrial control, point-of-sale, or silent office use – the DL40N delivers professional-grade performance in a compact, maintenance-free form factor.

Specifications

Motherboard
Number of processors supported	1
Processor
Thermal Design Power (TDP)	6 W
Built-in processor	Yes
Processor model	N150
Processor boost frequency	3.6 GHz
Processor threads	4
Processor cores	4
Number of processors supported	1
Processor manufacturer	Intel
ECC supported by processor	No
Processor cache	6 MB
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	1
Memory channels	Single-channel
ECC	No
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	16 GB
Non-ECC	Yes
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	2
Card reader integrated	No
NVMe	Yes
Storage drives installed	No
Graphics
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC888S
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel I226-LM
Ports & interfaces
DisplayPort version	1.4a
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
HDMI version	2.0b
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	0
Serial ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Steel
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	100 x 75 mm
LED indicators	HDD, Power
Cooling type	Passive
Product colour	Black
Chassis type	1.35L sized PC
Performance
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10, Windows 11 x64
Linux operating systems supported	Yes
BIOS type	UEFI AMI
Number of displays supported	3
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Number of processors supported	1
Audio chip	Realtek ALC888S
Harmonized System (HS) code	84733080
Colour
Product colour	Black
Technical details
BIOS type	UEFI AMI
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	100 x 75 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Processor cores	4
Cooling type	Passive
Chassis type	1.35L sized PC
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package weight	2.1 kg
Indication
LED indicators	HDD, Power
Software
Windows operating systems supported	Windows 10, Windows 11 x64
Linux operating systems supported	Yes
Operating system installed	No
Management features
On/off switch	Yes
Features
Number of displays supported	3
Logistics data
Harmonized System (HS) code	84733080
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Power supply type	External AC adapter
Power supply	65 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Package weight	2.1 kg
Weight	800 g
Packaging content
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1.35L sized PC
