LGA1700, Intel H610, 2 x SO-DIMM DDR5-5600 max. 96GB, PCI-Express Gen. 3.0 X4, Serial-ATA III, 1G LAN + 2.5G LAN, 120W

Description

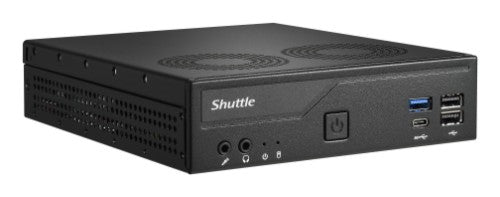

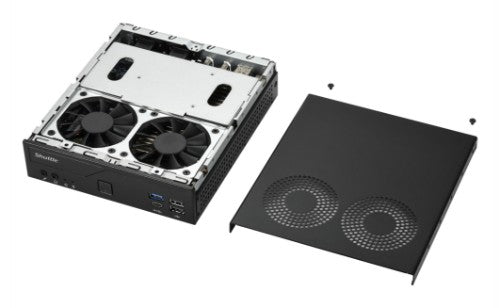

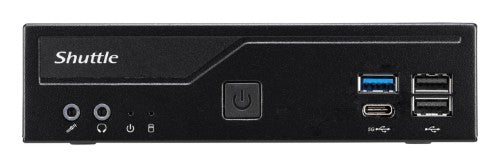

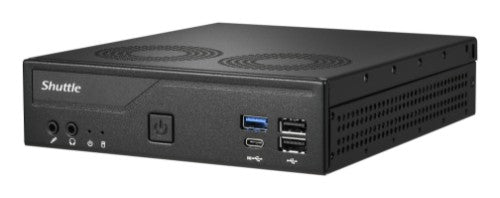

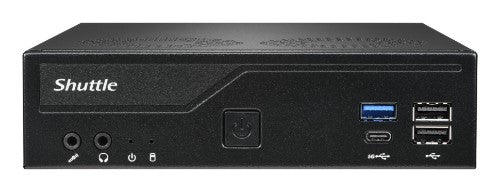

The Shuttle XPC slim Barebone DH610V2 with H610 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH610V2 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Specifications

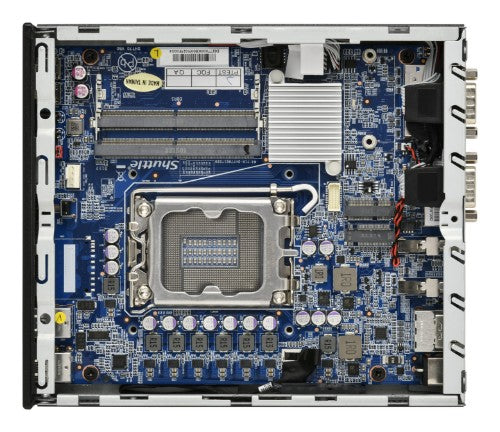

Motherboard
Processor socket	LGA 1700
Number of processors supported	1
Motherboard chipset	Intel H610
Processor
Built-in processor	No
Processor socket	LGA 1700
Number of processors supported	1
Motherboard chipset	Intel H610
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum internal memory	96 GB
Non-ECC	Yes
Internal memory installed	No
Video
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
NVMe	Yes
Storage drives installed	No
Graphics
On-board graphics card	Yes
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC888S
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel I226, Intel I219V

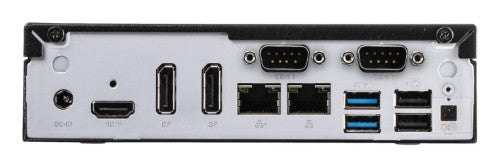

Ports & interfaces
DisplayPort version	1.4
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
USB 2.0 ports quantity	4
Serial ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Metal
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	75 x 75,100 x 100 mm
LED indicators	Power, HDD
Cooling type	Active
Product colour	Black
Chassis type	1.35L sized PC
Performance
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
BIOS type	AMI
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Processor socket	LGA 1700
Number of processors supported	1
Motherboard chipset	Intel H610
Audio chip	Realtek ALC888S
Colour
Product colour	Black
Technical details
BIOS type	AMI
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Cooling type	Active
Chassis type	1.35L sized PC
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package weight	2.1 kg
Indication
LED indicators	Power, HDD
Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Sustainability
Sustainability certificates	ENERGY STAR, ErP
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Package weight	2.1 kg
Weight	1.3 kg
Packaging content
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1.35L sized PC
