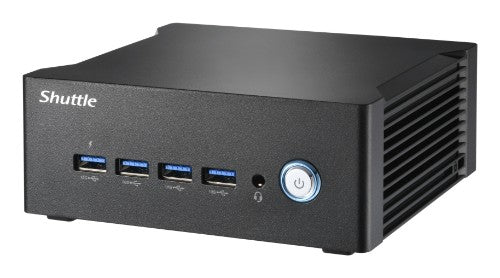

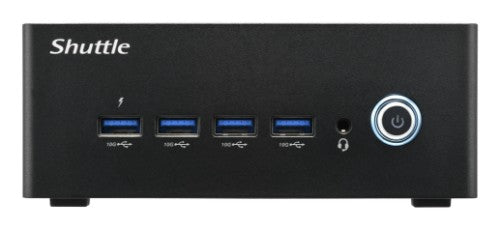

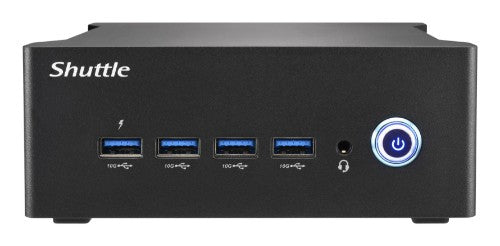

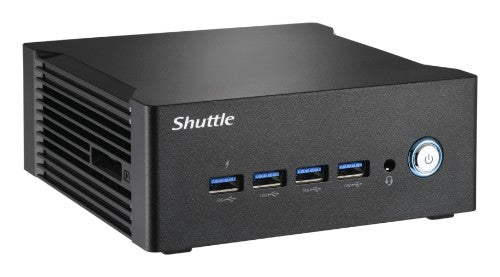

Nano PC NA20H2, AMD Ryzen™ 7 255 APU, Radeon780M , 2xHDMI, 2xUSB-C 4.0(DP), 2x2.5Gbit LAN, 24/7 permanent operation, incl. VESA

Description

Affordable nano-PC with AMD APU offers plenty of processing power and ports
The NA20H series featuring AMD processors includes the entry-level model NA20H2, which offers impressive computing power but without NPU. The NA20H5 and NA20H7 models, on the other hand, are based on AMD Ryzen AI processors, whose NPU performance meets the requirements of Microsoft Copilot+ to utilise certain AI features in Windows 11. This Nano PC supports up to 96 GB of DDR5 memory and offers extensive connectivity options, including four UHD graphics ports and two USB4 ports. It offers a powerful and cost-effective solution for applications such as content creation, gaming, entertainment, office tasks and AI.

Specifications

Motherboard
Number of processors supported	1
Motherboard chipset	AMD SoC
Processor
Thermal Design Power (TDP)	45 W
L3 cache	16 MB
Built-in processor	Yes
Processor model	255
Processor boost frequency	4.9 GHz
Processor threads	16
Processor frequency	3.8 GHz
Processor cores	8
Processor family	AMD Ryzen™ 7
Number of processors supported	1
Motherboard chipset	AMD SoC
L2 cache	6 MB
Processor manufacturer	AMD
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum internal memory	96 GB
Non-ECC	Yes
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	AMD
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Number of storage drives supported	1
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Card reader integrated	Yes
SSD form factor	M.2
NVMe	Yes
Storage drives installed	No
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Maximum resolution	3840 x 2160 pixels
Number of displays supported	4
On-board graphics card	Yes
Graphics card family	AMD
On-board graphics card model	AMD Radeon 780M
Performance
BIOS type	UEFI AMI
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Number of processors supported	1
Motherboard chipset	AMD SoC
Maximum resolution	3840 x 2160 pixels
Windows operating systems supported	Windows 11
Linux operating systems supported	Yes
Number of displays supported	4
Operating system installed	No
Harmonized System (HS) code	84714900
Audio
Built-in speaker(s)	No
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8125BGS

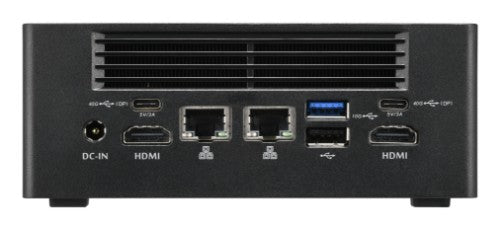

Ports & interfaces
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB4 Gen 3x2 ports quantity	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Plastic
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	100 x 100,75 x 75 mm
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	1L sized PC
Colour
Product colour	Black
Technical details
BIOS type	UEFI AMI
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	100 x 100,75 x 75 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Processor cores	8
Cooling type	Active
Chassis type	1L sized PC
Sustainability certificates	ErP, ENERGY STAR
Compliance certificates	CE, Federal Communications Commission (FCC), BSMI, RoHS
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package weight	1.7 kg
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11
Linux operating systems supported	Yes
Operating system installed	No
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Harmonized System (HS) code	84714900
Sustainability
Sustainability certificates	ErP, ENERGY STAR
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	132 mm
Depth	143 mm
Height	55 mm
Package weight	1.7 kg
Weight	800 g
Packaging content
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1L sized PC
