1500 VA, 1200 W, USB/RS232C, 6 x C13, 50 dB, 16.5 kg, Grey

Description

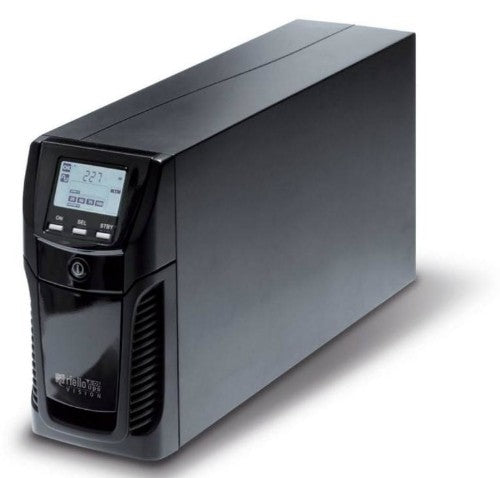

The VISION series is available in the Tower version (VST) for models from 800VA to 2000VA with sinewave digital technology.

The VISION series, for its connectivity and advanced communications, is the ideal solution for the most demanding customers who require a power supply system that offers superior protection and versatility.

VISION is the best protection for peripheral network devices, conventional servers, and network back-up systems.

High protection
The Vision series uses Line Interactive technology and provides a sinewave output.
The UPS is 98% efficient with a low energy consumption and also provides a high level of protection against mains power disturbances.
An AVR (Automatic Voltage Regulator provides protection from brownouts, surges, overvoltages and undervoltage without battery intervention.

Reduced battery usage ensures that the battery set is 100% available for mains power failures.
EMI filters provide further protection from surges and transients. When the mains power supply fails, the load is powered by the inverter, providing a perfect sinewave for maximum power continuity and reliability.

Specifications

Power
Output power	1200 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output power capacity	1.5 kVA
Performance
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Noise level	50 dB
Features
Output power	1200 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Noise level	50 dB
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery recharge time	6 h
Design
Form factor	Compact
Product colour	Grey
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Packaging data
Package dimensions (WxDxH)	250 x 540 x 354 mm
Package weight	18.4 kg
Weight & dimensions
Weight	16.5 kg
Width	160 mm
Package weight	18.4 kg
Height	247 mm
Depth	443 mm
Other features
Package dimensions (WxDxH)	250 x 540 x 354 mm
