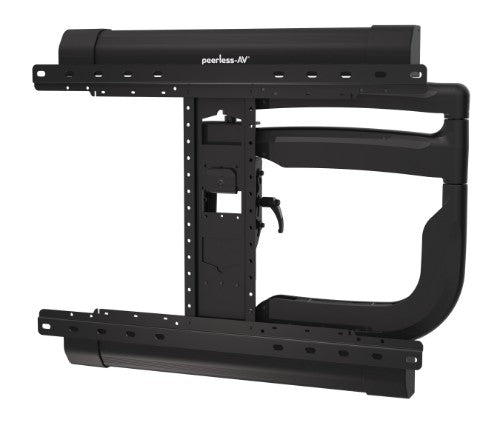

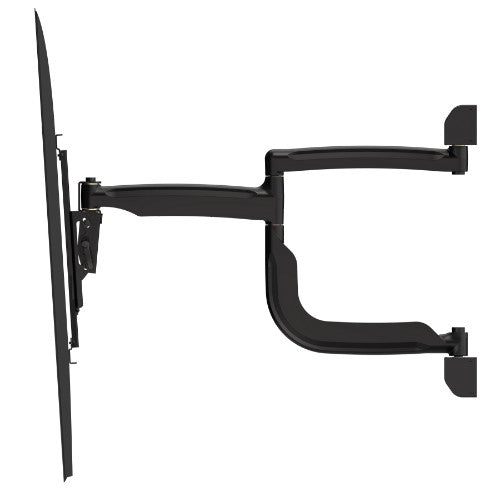

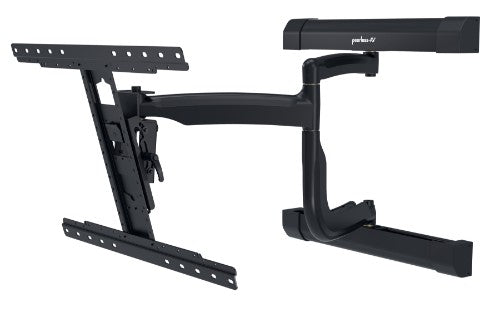

SmartMount Articulating Wall Arm for 39" to 75" Displays

Key Features

• Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns
• Retracts to hold display just 3.10" (79mm) from the wall
• Extends up to 26.60" (676mm)
• ±90° degrees of pivot allows for perfect display positioning
• Easy leveling ±5° after display installation
• Quick and easy, Hook-and-Hang™ one person installation
• I-shaped adaptor plate helps avoid blocking connections on back of display
• +15°/-5° vertical tilt movement for the ideal viewing angle
• Landscape or Portrait mounting options increases display versatility
• Stylish wall plate covers create a finished look and are easy to install and remove

Description

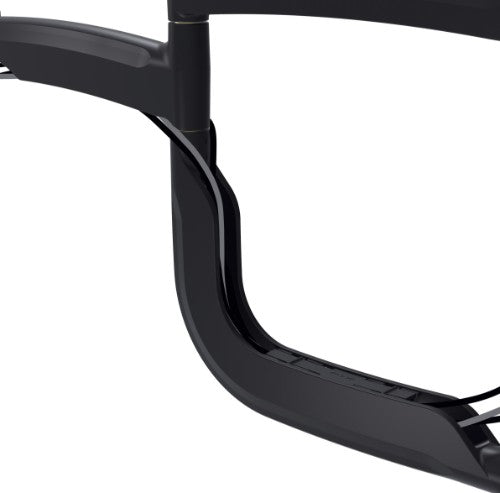

The SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA761PU, extend the display up to 26.6" (676mm) or fully-retract it to just 3.1" (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	99.1 cm (39")
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	190.5 cm (75")
Maximum weight capacity	57 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 13 mm
Cable management	Yes
Tilt angle range	-5 - 15°
Pivot angle	0 - 90°
Distance to the wall (min)	7.9 cm
Distance to the wall (max)	67.6 cm
Easy to adjust	Yes
Tilt adjustment	Yes
Technical details
Cable management	Yes
Pivot angle	0 - 90°
Number of displays supported	1
Distance to the wall (min)	7.9 cm
Distance to the wall (max)	67.6 cm
Product colour	Black
Mounting type	Wall
Orientation	Landscape/Portrait
Easy to install	Yes
Design
Cable management	Yes
Product colour	Black
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	622 mm
Height	505 mm
Weight	11.1 kg
Depth (min)	7.9 cm
Depth (max)	67.6 cm
Packaging data
Package width	1035 mm
Package depth	121 mm
Package height	603 mm
Package type	Box
Package weight	15.2 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
