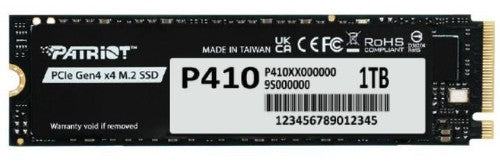

1 TB, 2280 M.2, NVMe 1.4, 9 g

Key Features

• Powered by the latest PCIe Gen4 x4 controller
• NVMe 1.4 compliant
• Sequential Read/Write speeds up to 5,000MB/s and 4,500MB/s
• Supports Host Memory Buffer (HMB)
• High-efficiency ultra-slim graphene heat spreader
• Total Bytes Written (TBW): 1280TB
• Operating temperature: 0°C to 70°C
• Integrated SmartECC™ technology for data integrity
• OS compatibility: Windows 7*/8.0*/8.1/10/11 (*May require driver)

Description

Built for laptops, handhelds, and compact systems, the Patriot P410 delivers responsive speed and everyday reliability to elevate your computing experience. With PCIe Gen4 x4 performance of up to 5,000MB/s read and 4,500MB/s write, it enables fast startups, smooth loading, and quicker access to files and applications.

An advanced caching architecture boosts write performance while helping to lower power consumption and reduce system heat—extending battery life for mobile devices. The slim, single-sided 2280 form factor ensures broad compatibility in space-constrained systems, and capacity options up to 4TB provide the flexibility to store more of what matters. Backed by a 5-year Patriot warranty, the P410 is engineered to power your everyday—effortlessly.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1 TB
Performance
Windows operating systems supported	Yes
Interface	PCI Express
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	4500 MB/s
Sequential read speed (CDM)	5000 MB/s
TBW rating	320
PCI Express interface data lanes	x4
SSD capacity	1 TB
Data transfer rate	5 Gbit/s
Data transmission
Data transfer rate	5 Gbit/s
Features
Interface	PCI Express
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	4500 MB/s
Sequential read speed (CDM)	5000 MB/s
TBW rating	320
PCI Express interface data lanes	x4
SSD capacity	1 TB
Windows operating systems supported	Yes
Data transfer rate	5 Gbit/s
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Design
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	11 g
Height	3.8 mm
Depth	80 mm
Package width	100 mm
Package depth	66 mm
Package height	132 mm
Package weight	22 g
Packaging data
Package width	100 mm
Package depth	66 mm
Package height	132 mm
Package weight	22 g
System requirements
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Technical details
Interface	PCI Express
Operating temperature (T-T)	0 - 70 °C
SSD form factor	M.2
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Software
Windows operating systems supported	Yes
Other features
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
