Neomounts TV/Monitor Wall Mount (Full Motion) for 60"-100" Screen - Black

Description

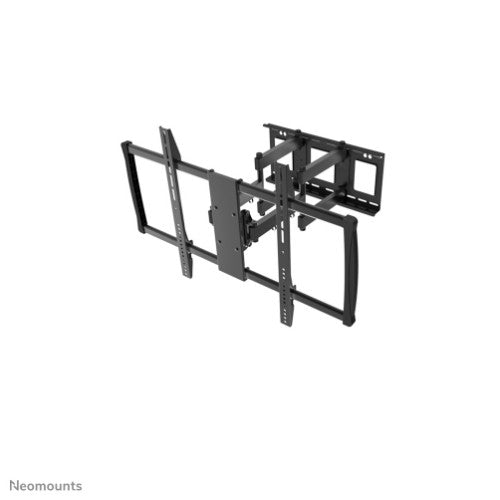

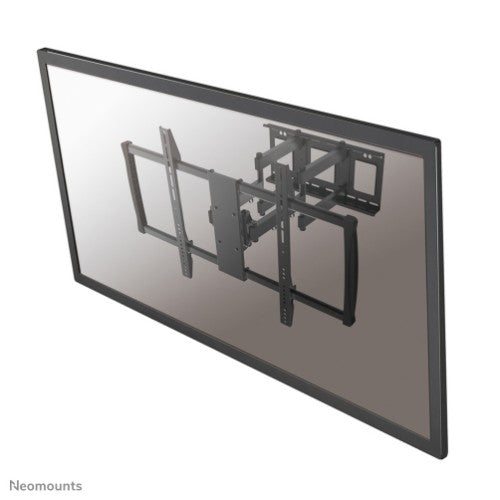

The Neomounts wall mount, LFD-W8000 is a full swing tilt- and swivel wall mount for flat screens up to 100" (254 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

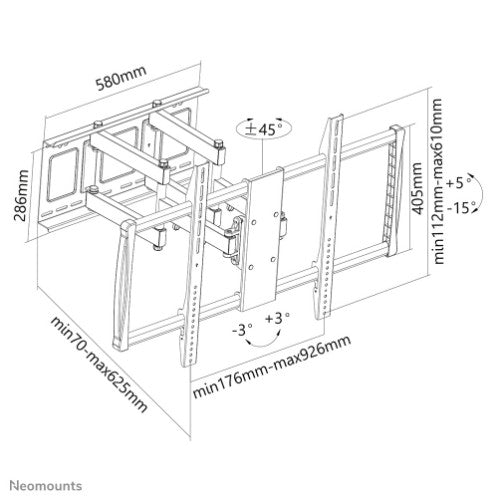

Neomounts' tilt (-15°|+5°) and swivel (-45°|+45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 7 to 62.5 centimetres. A cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.

Neomounts LFD-W8000 has three pivot points and is suitable for screens up to 100" (254 cm). The weight capacity of this product is 80 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 900x600mm.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	152.4 cm (60")
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	900 x 600 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	80 kg
Ergonomics
Tilt angle range	0 - 20°
Swivel angle range	0 - 90°
Swivel angle	90°
Distance to the wall (min)	7 cm
Distance to the wall (max)	62.5 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Number of displays supported	1
Distance to the wall (min)	7 cm
Distance to the wall (max)	62.5 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Package net weight	14.6 kg
Master (outer) case net weight	14.6 kg
Design
Product colour	Black
Housing material	Steel
Packaging data
Package width	539 mm
Package depth	80 mm
Package height	1168 mm
Package weight	14.6 kg
Logistics data
Master (outer) case width	1180 mm
Master (outer) case length	95 mm
Master (outer) case height	610 mm
Master (outer) case gross weight	18 kg
Products per master (outer) case	1 pc(s)
Master (outer) case net weight	14.6 kg
Products per pallet (EU)	15 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
