Neomounts FPMA-D700D6 Monitor arm for 6 screens - 19-27" - 0-8 kg/screen - black

Description

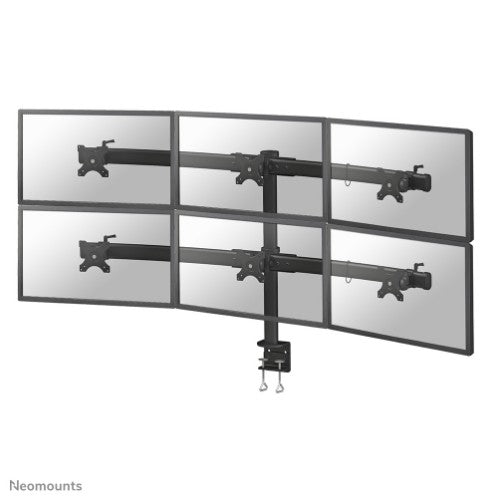

The Neomounts desk mount, model FPMA-D700D6 is a tilt-, swivel and rotatable desk mount for 6 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

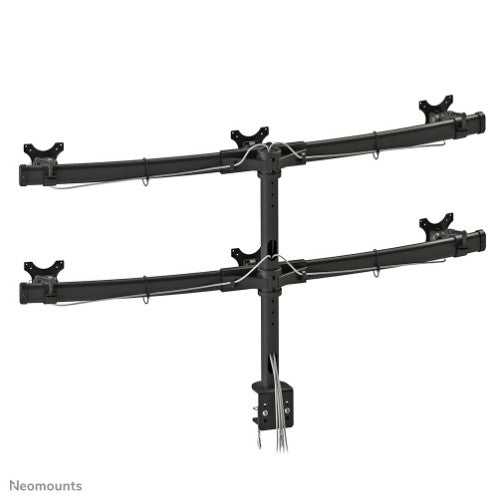

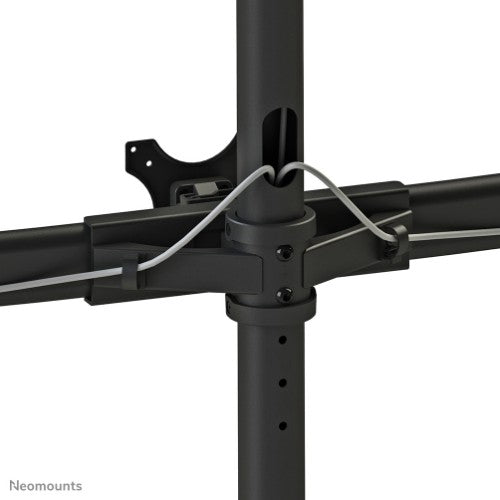

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 22 to 70 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D700D6 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	8 kg
Desk thickness (max)	9 cm
Minimum screen size	48.3 cm (19")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	6
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm

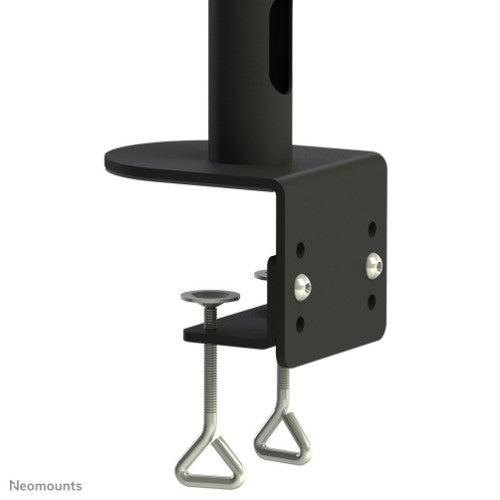

Mounting	Clamp
Maximum weight capacity	8 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Depth adjustment range	0 - 70 mm
Height adjustment	Yes
Height adjustment range	220 - 700 mm
Swivel angle range	0 - 180°
Swivel angle	180°
Tilt angle range	0 - 180°
Angle of rotation	360°
Height adjustment type	Manual
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	129 cm
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Desk
Product colour	Black
Width adjustment range	0 - 1290 mm
Weight & dimensions
Depth	70 mm
Height	700 mm
Weight	16.3 kg
Package width	880 mm
Package depth	275 mm
Package height	220 mm
Package weight	16.8 kg
Packaging data
Package width	880 mm
Package depth	275 mm
Package height	220 mm
Package weight	16.8 kg
Other features
Width adjustment range	0 - 1290 mm
Mounting type	Desk
Mounting	Clamp
Country of origin	Taiwan
Logistics data
Master (outer) case width	880 mm
Master (outer) case length	275 mm
Master (outer) case height	220 mm
Master (outer) case gross weight	18.1 kg
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
Products per pallet (EU)	27 pc(s)
Master (outer) case net weight	16.8 kg
Harmonized System (HS) code	7326909890
