DST-Mini XT, USB-C Laptop Mini Docking Station with Single Display (4K) or Dual Display (Full HD) and 100W Pass-Through Charging

Key Features

• Adds 2 USB Type A ports and 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
• Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
• Features DisplayPort Alternate Mode
• USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock
• 2 year warranty

Description

The DST-Mini XT is Lindy's feature-packed mini docking station. Housed in robust aluminium, this compact dock has been designed for those who need greater additional connectivity, in a portable form factor.

Extended Displays

The DST-Mini XT can support a single extended display at 4K@30Hz through the HDMI or DisplayPort connections. Dual display setups are also possible with crisp Full HD 1080p. This makes this dock the perfect solution for any creative, data analyst or intense spreadsheet worker.

Added Connectivity

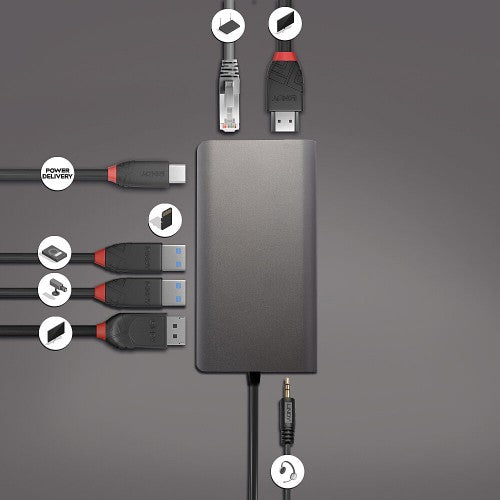

This docking station can unlock a world of connectivity for your device. Delivering DisplayPort, HDMI, Gigabit Ethernet, SD Card Slot, USB-C, SuperSpeed USB Type A ports (5Gbps) and a combined 3.5mm headphone jack. To deliver as much added functionality as possible, the right USB Type A port has both SuperSpeed data transfer and Battery Charging 1.2, meaning you can charge connected mobile devices.

Pass-through Charging

Thanks to the USB-C PD 3.0, by connecting a USB-C charger to the DST-Mini XT you can expect up to 100W charging of the connected laptop. With Battery Charging 1.2, one of USB Type A port delivers 5V and up to 1.5A for faster charging. Simply connect one USB-C cable and be confident that your laptop and connected devices will be fully charged and ready to go.

Plug-and-Play

This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.2
HDCP version	1.4
HDCP	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black, Grey
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	SD
Certification	CE, UKCA, FCC, REACH & RoHS
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	30 Hz
Technical details
Product colour	Black, Grey
Data transfer rate	5 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	CE, REACH, RoHS
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Power
Power source type	USB
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	115 g
Width	116.5 mm
Depth	61 mm
Height	16 mm
Package weight	150 g
Package width	150 mm
Package depth	137 mm
Package height	120 mm
Design
Product colour	Black, Grey
Certification	CE, UKCA, FCC, REACH & RoHS
Packaging data
Quantity per pack	1 pc(s)
Package weight	150 g
Package width	150 mm
Package depth	137 mm
Package height	120 mm
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Certificates
Certification	CE, UKCA, FCC, REACH & RoHS
Logistics data
Harmonized System (HS) code	84733020
