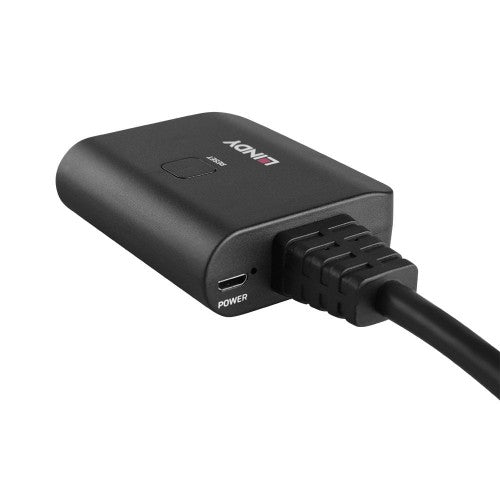

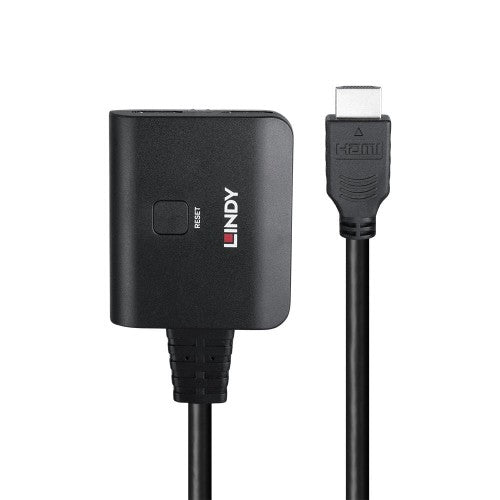

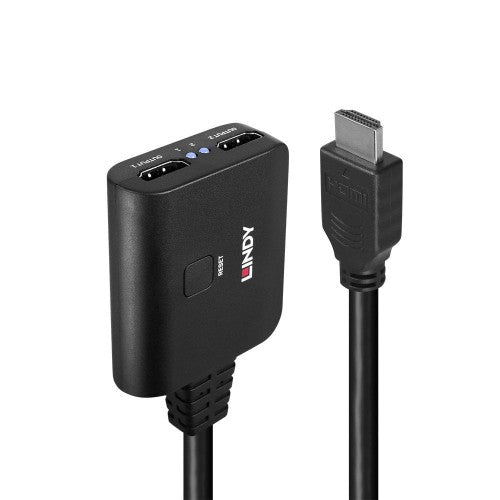

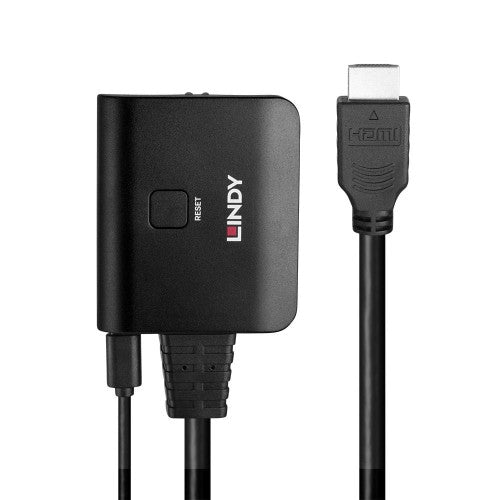

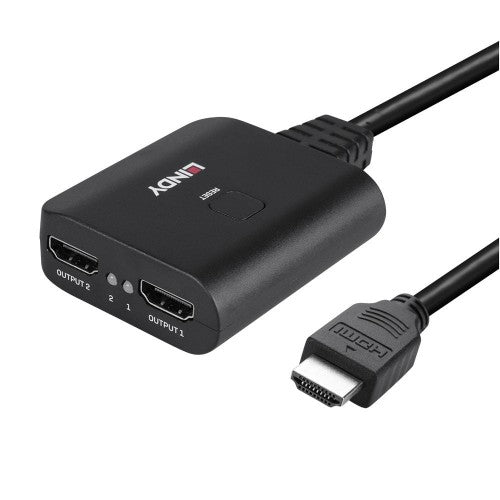

2 Port HDMI 4K60 Splitter Cable

Key Features

• Allows two HDMI monitors to be connected to a single HDMI output
• Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
• HDCP 2.2 support for enhanced compatibility
• Gold plated connectors
• 2 year warranty

Description

The Lindy 2 Port HDMI 4K60 Splitter Cable is a compact, high quality solution for distributing HDMI 2.0 18G signals across dual displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display.

The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Specifications

Ports & interfaces
Video ports quantity	2
Video port type	HDMI
Video out	2x HDMI
HDMI version	2.0
Cable length	0.5 m
Features
Housing material	Acrylonitrile butadiene styrene (ABS)
Maximum refresh rate	60 Hz
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Product colour	Black
Cable length	0.5 m
HDCP version	2.2
High Dynamic Range (HDR) supported	Yes
Weight & dimensions
Weight	106 g
Width	65 mm
Depth	54.5 mm
Height	20.5 mm
Package weight	147 g
Package type	Box
Package depth	145 mm
Package width	190 mm
Package height	30 mm
Packaging data
Package weight	147 g
Package type	Box
Package depth	145 mm
Package width	190 mm
Package height	30 mm
Quantity per pack	1 pc(s)
Packaging content
Cables included	HDMI, USB Type-A to Micro-USB Type-B
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Video
Maximum refresh rate	60 Hz
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Colour
Product colour	Black
Technical details
Housing material	Acrylonitrile butadiene styrene (ABS)
Package width	190 mm
Package height	30 mm
Video out	2x HDMI
HDMI version	2.0
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Logistics data
Quantity per pack	1 pc(s)
