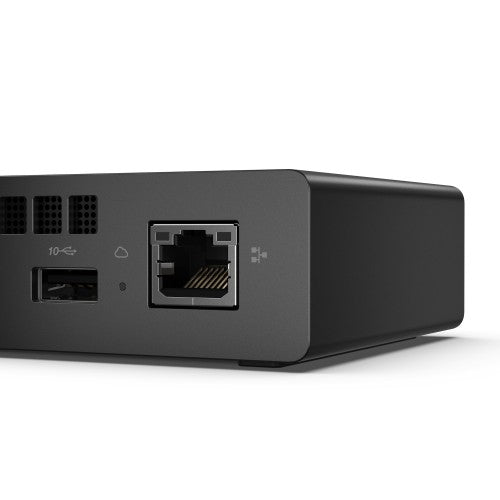

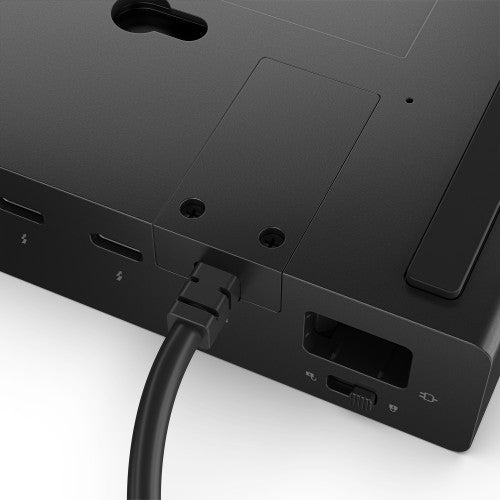

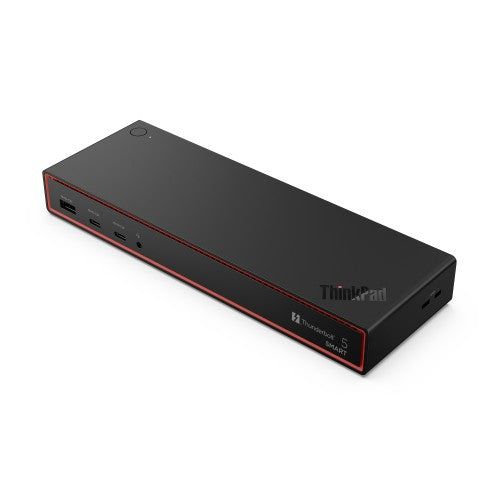

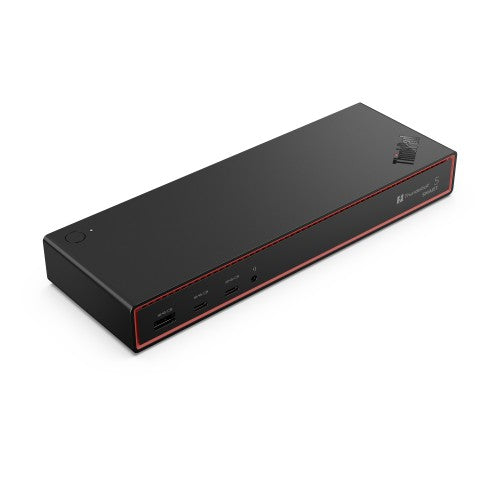

ThinkPad Thunderbolt 5 Smart Dock 7500 - EU/INA/VIE/ROK

Key Features

• The ThinkPad® Thunderbolt™ 5 Smart Dock 7500 With the Cutting-Edge Thunderbolt™ technology, makes the connectivity performance reached a new Height, with up to 120 Gbps bandwidth, you can have up to 4 Ultra High Spec display setup, either it's three Ultra-High Resolution 8K 60Hz Displays and one High Resolution 4K 60Hz or two 4K 240Hz and two 4K 120Hz High Refresh Rate monitors setup, it's all up to you, fully extend your Mobile Workstation notebook to a Power Station with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 180W to give a rapid-charge to your notebook, you can drastically expand the potential of your workspace with ease
• Universal Dock Compatibility a cross different Operating System
• With Lenovo™ Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease

Description

New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	Thunderbolt 5
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	180 W
DisplayPort version	2.1
Thunderbolt 5 ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	4
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Certification	FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark Ukraine DoC NOM IFT TELEC UKCA VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC ARTCI INCM Thunderbolt Cert EVO
Cable lock slot type	Kensington
HD type	8K Ultra HD
Colour name	Eclipse Black
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Storage
Card reader integrated	No
Power
Power source type	AC
Power supply	265 W
Wireless charging	No
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Weight	585 g
Width	235 mm
Depth	80 mm
Height	30 mm
Package weight	1.73 kg
Package width	260 mm
Package depth	165 mm
Package height	74 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark Ukraine DoC NOM IFT TELEC UKCA VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC ARTCI INCM Thunderbolt Cert EVO
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package weight	1.73 kg
Package width	260 mm
Package depth	165 mm
Package height	74 mm
Packaging content
AC adapter included	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)
Certificates
Certification	FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark Ukraine DoC NOM IFT TELEC UKCA VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC ARTCI INCM Thunderbolt Cert EVO
