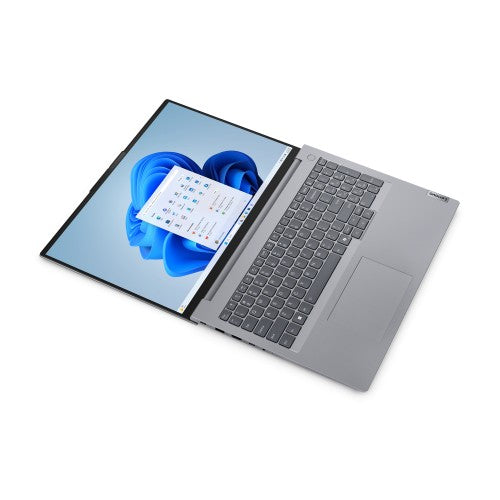

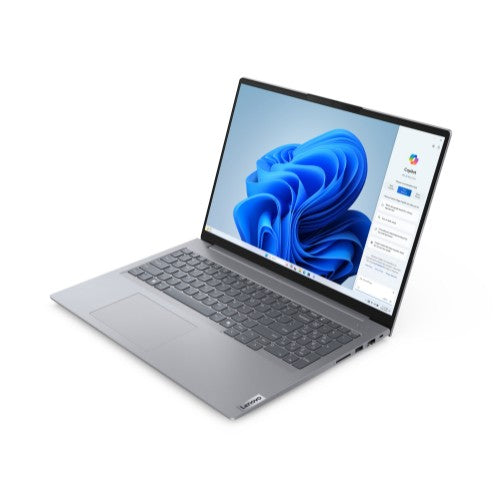

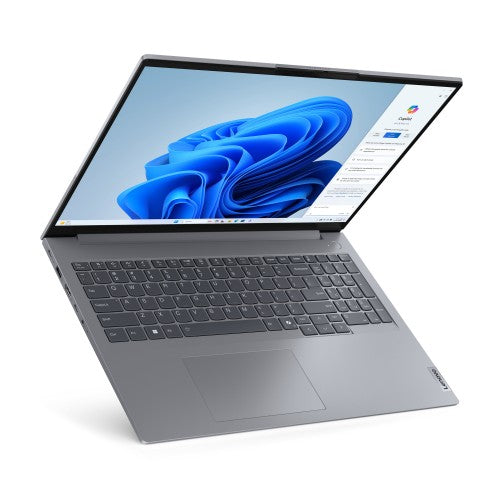

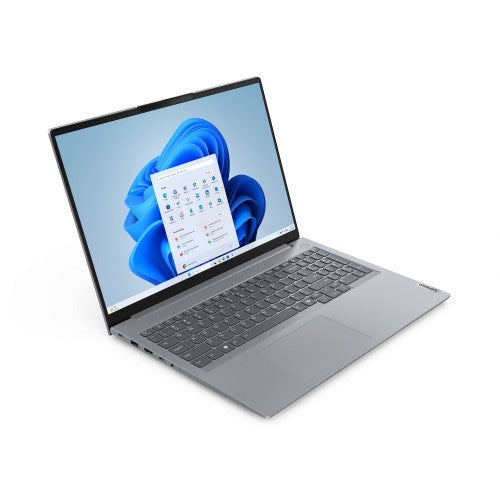

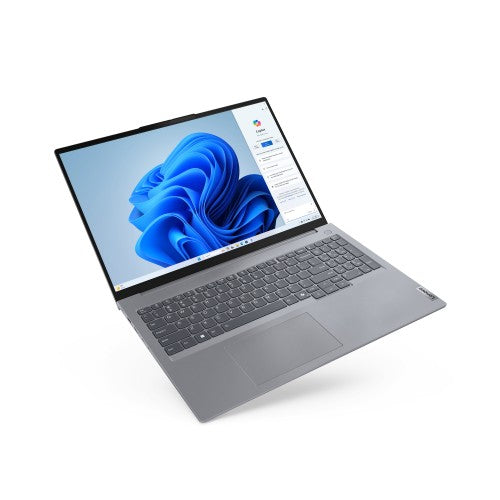

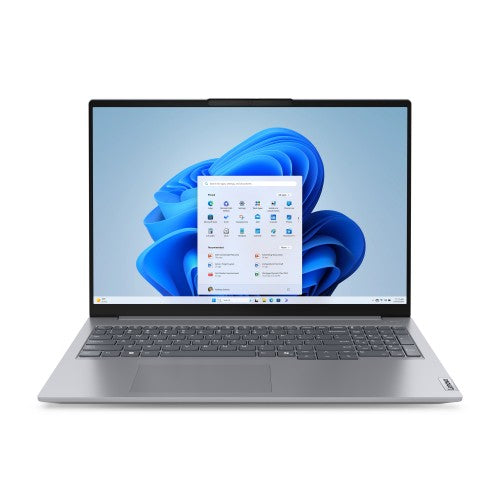

AMD Ryzen 5 7535HS (6C/12T, 3.3/4.55GHz, 3MB L2/16MB L3), 1x 16GB SODIMM DDR5-4800, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC, AMD Radeon 660M Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, Windows 11 Pro

Key Features

• AMD Ryzen 5 7535HS (6C/12T, 3.3/4.55GHz, 3MB L2/16MB L3)
• 16" WUXGA (1920x1200) IPS 300nits 45% NTSC
• 1x 16GB SODIMM DDR5-4800
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• AMD Radeon 660M Graphics
• Windows 11 Pro

Description

Specifications

Design
Colour name	Arctic Grey
Product type	Laptop
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Grey
Display back cover material	Aluminium
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	AMD Ryzen 7000 Series
Processor cache type	L3
Processor cache	16 MB
Processor frequency	3.3 GHz
Processor model	7535HS
Processor boost frequency	4.55 GHz
Processor cores	6
Processor threads	16
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor base power	35 W
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	1
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	German
Software
Operating system language	German
Operating system architecture	64-bit
Trial software	Office
Operating system installed	Windows 11 Pro
Technical details
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Grey
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	45 Wh
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
Weight	1.7 kg
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
