1TB, M.2 Type 2280-S4-M, PCI Express 4.0, BiCS FLASH TLC, 64 GT/s, 80.15 x 22.15 x 2.63 mm, 7.4 g

Key Features

• BiCS FLASH
• NVMe™ 1.4 Technology
• M.2 2280 Form Factor
• PCIe® Gen4 x4
• SSD Utility Management Software

Description

Welcome to the World of PCIe® 4.0
Designed to deliver an enhanced PC experience, the EXCERIA PLUS G3 SSD series is compatible with PCIe® 4.0 and delivers exceptional transfer speeds of up to 5,000 MB/s for sequential reads and 3,900 MB/s for sequential writes. Whether you are gaming or video editing, this new series will provide the performance needed.

Storage Slimmed Down

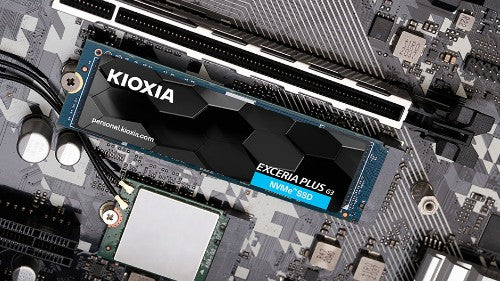

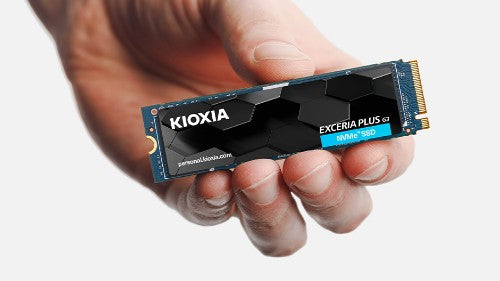

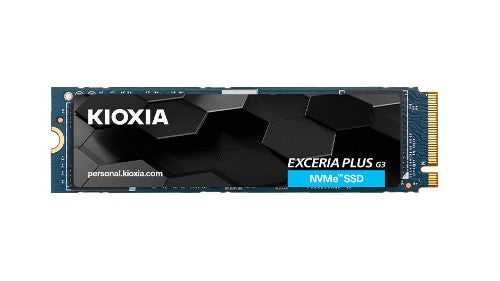

Featuring a space-saving, single-sided M.2 2280 form factor, the EXCERIA PLUS G3 SSD series is compatible with a wider range of devices. These compact SSDs plug directly into the motherboard, removing cable clutter for a sleeker and an easy system upgrade.

Speed Ahead with PCIe® 4.0
The EXCERIA PLUS G3 SSD series delivers improved performance without cutting corners. Supporting PCIe® 4.0 and NVMe™ 1.4, these SSDs take mainstream to the next level and offer an upgraded computing experience for gamers and video editors.

Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Specifications

Hard drive
SSD capacity	2 TB
Memory type	BiCS FLASH TLC
Data transmission
Read speed	5000 MB/s
Write speed	3900 MB/s
Data transfer rate	64 Gbit/s
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 4.0
NVMe	Yes
NVMe version	1.4
TBW rating	1200
SSD capacity	2 TB
Read speed	5000 MB/s
Write speed	3900 MB/s
Memory type	BiCS FLASH TLC
Mean time between failures (MTBF)	1500000 h
Data transfer rate	64 Gbit/s
SSD form factor	M.2
Random read	680000 IOPS
Random write	950000 IOPS
Performance
Interface	PCI Express 4.0
NVMe	Yes
NVMe version	1.4
TBW rating	1200
SSD capacity	2 TB
Read speed	5000 MB/s
Write speed	3900 MB/s
Memory type	BiCS FLASH TLC
Mean time between failures (MTBF)	1500000 h
Data transfer rate	64 Gbit/s
Random read	680000 IOPS
Random write	950000 IOPS
Design
SSD form factor	M.2
Weight & dimensions
Width	22.1 mm
Weight	7 g
Height	2.63 mm
Depth	80.2 mm
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
SSD form factor	M.2
Compliance certificates	RoHS
Other features
Compliance certificates	RoHS
