8GB, DDR4, 3200MHz, Non-ECC, CL22, 1.2V, 288-pin, JEDEC, Bulk, 50 unit increments

Key Features

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• RoHS Compliant and Halogen-Free

Description

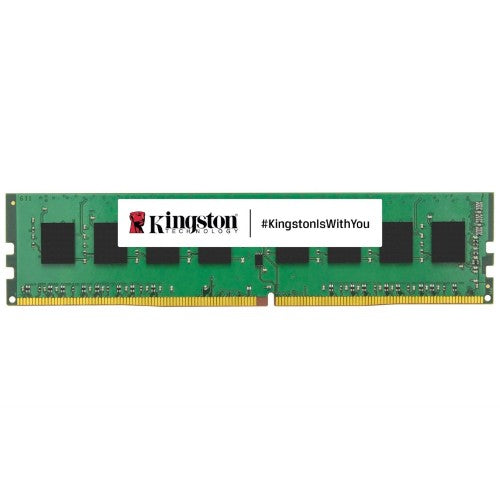

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.2 V
Design
JEDEC standard	Yes
Memory
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 8 GB
Internal memory	8 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	1024M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory ranking	1
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
Features
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 8 GB
Internal memory	8 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	1024M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory ranking	1
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
JEDEC standard	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Doesn't contain	Halogen
Compliance certificates	RoHS
Sustainability
Doesn't contain	Halogen
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
Doesn't contain	Halogen
