16GB, DDR4, 3200MHz, ECC, CL22, X4, 1.2V, Registered, DIMM, 288-pin

Key Features

• Power Supply: VDD = 1.2V
• VDDQ = 1.2V
• VPP = 2.5V
• VDDSPD = 2.41V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet
• 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
• the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive
• Per DRAM Addressability is supported
• Internal Vref DQ level generation is available
• Write CRC is supported at all speed grades
• CA parity (Command/Address Parity) mode is supported

Description

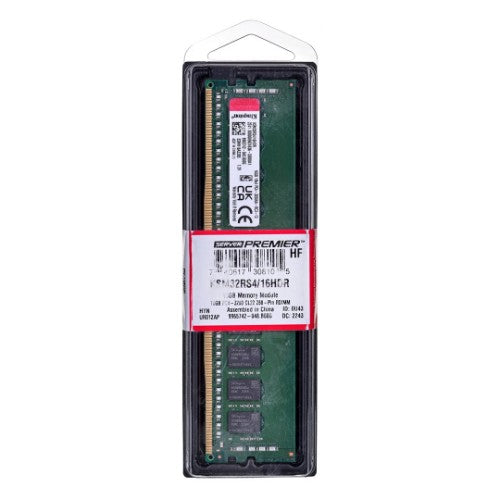

Kingston's KSM32RS4/16HDR is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx4, ECC, memory module, based on eighteen 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.2 V
Technical details
Country of origin	Taiwan
Memory
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
ECC	Yes
Internal memory type	DDR4
Features
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Country of origin	Taiwan
ECC	Yes
Internal memory type	DDR4
Harmonized System (HS) code	84733020
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
