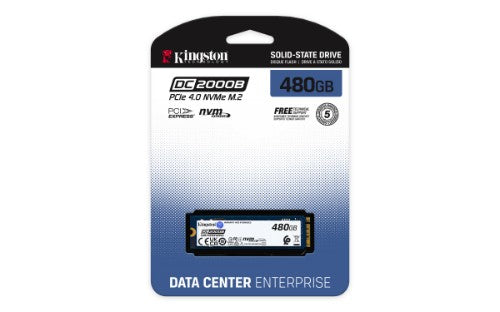

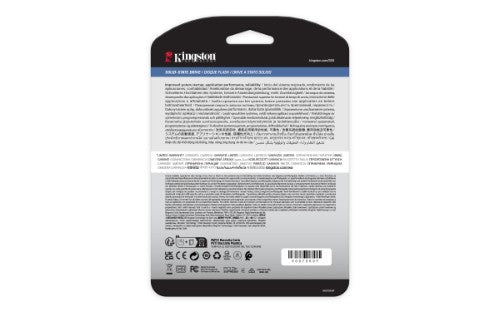

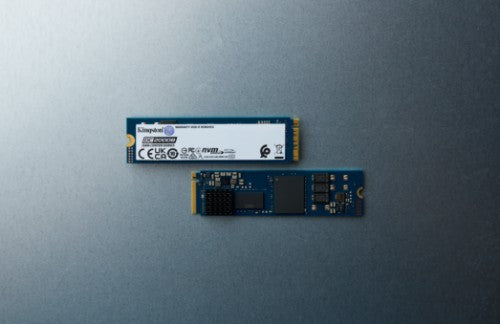

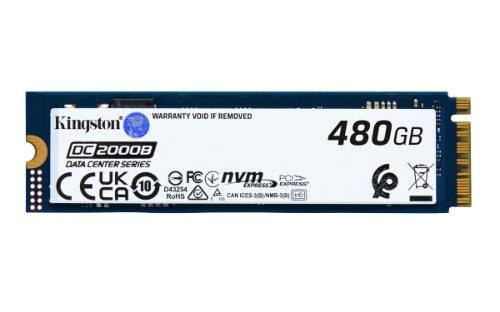

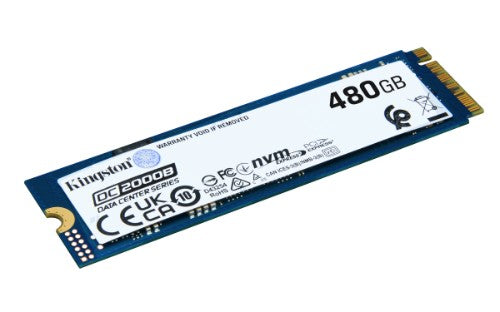

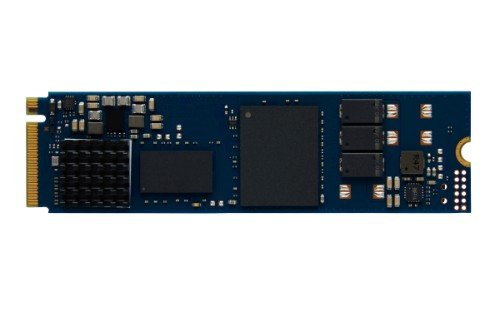

480G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD

Key Features

• PCIe 4.0 NVMe Gen 4x4 performance
• Hardware-based power loss protection
• Latency and IOPS consistency
• Designed for data center environments

Description

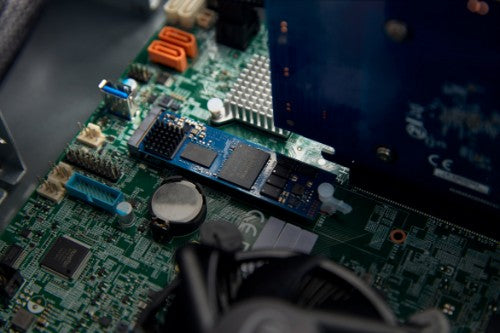

Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	480 GB
Memory type	3D TLC
Data transmission
Read speed	7000 MB/s
Write speed	800 MB/s
Random write (4KB)	32000 IOPS
Random read (4KB)	530000 IOPS
Write latency	29 µs
Read latency	70 µs
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	Server
NVMe	Yes
TBW rating	350
PCI Express interface data lanes	x4
SSD capacity	480 GB
S.M.A.R.T. support	Yes
Read speed	7000 MB/s
Write speed	800 MB/s
Memory type	3D TLC
Random write (4KB)	32000 IOPS
Random read (4KB)	530000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	29 µs
Read latency	70 µs
SSD form factor	M.2
H/W PLP function	Yes
Use conditions	Server/Enterprise
M.2 SSD size	2280 (22 x 80 mm)
Drive writes per day (DWPD)	0.4
Power
Power consumption (write)	5.77 W
Power consumption (read)	3.29 W
Average power consumption (write)	5.6 W
Average power consumption (read)	3.22 W
Performance
Interface	PCI Express 4.0
Component for	Server
NVMe	Yes
TBW rating	350
PCI Express interface data lanes	x4
SSD capacity	480 GB
S.M.A.R.T. support	Yes
Read speed	7000 MB/s
Write speed	800 MB/s
Memory type	3D TLC
Random write (4KB)	32000 IOPS
Random read (4KB)	530000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	29 µs
Read latency	70 µs
Design
Component for	Server
Cooling type	Heatsink
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	10 g
Height	8.9 mm
Depth	80 mm
Package width	129.5 mm
Package depth	14.2 mm
Package height	184.2 mm
Package weight	33.77 g
Packaging data
Package width	129.5 mm
Package depth	14.2 mm
Package height	184.2 mm
Package weight	33.77 g
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	280.62 g
Products per master (outer) case	6 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Country of origin	China, Taiwan
SSD form factor	M.2
Other features
Cooling type	Heatsink
Country of origin	China, Taiwan
Logistics data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	280.62 g
Products per master (outer) case	6 pc(s)
Country of origin	China, Taiwan
