Ergonomic Monitor Mount

Key Features

• An ergonomic solution for your comfort, the perfect companion for your monitor
• Fully adjustable gas spring monitor arm. Easily adjust your monitor to any height

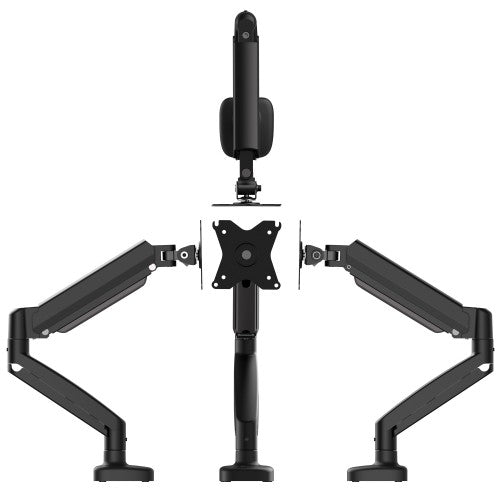

• Allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle
• Supports 17” to 32” monitor weighing up to 8kg/17.6 lbs, works with most VESA® -compatible monitors
• Simple to Install, includes clear instructions and all necessary tools

Description

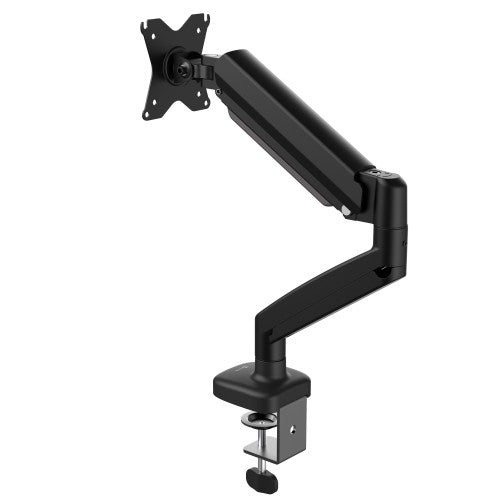

The JTSA101 is a gas spring monitor mount. The arm can hold max a 32” screen weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specifications

Mounting
Desk thickness (min)	1 cm
Minimum screen size	43.2 cm (17")
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm

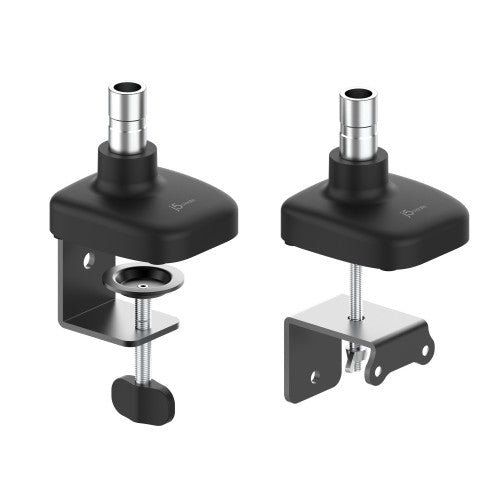

Mounting	Clamp/Grommet
Maximum weight capacity	8 kg
Maximum screen size	81.3 cm (32")
Grommet mount desk thickness (max)	5 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Swivel angle	180°
Tilt angle range	-45 - 90°
Angle of rotation	360°
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Easy to install	Yes
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Technical details
Mounting type	Desk
Product colour	Black
Cable management	Yes
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Weight & dimensions
Width	90 mm
Depth	320 mm
Height	465 mm
Weight	1.98 kg
Package width	208 mm
Package depth	465 mm
Package height	106 mm
Package type	Box
Package weight	2.61 kg
Packaging data
Package width	208 mm
Package depth	465 mm
Package height	106 mm
Package type	Box
Package weight	2.61 kg
Quantity per pack	1 pc(s)
Packaging content
Packaging content	1 - JTSA101 Ergonomic Monitor Mount 1 - Installation tools & accessories 1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Operating relative humidity (H-H)	0 - 85%
Maximum operating temperature	30 °C
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Other features
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	233 mm
Master (outer) case length	486 mm
Master (outer) case height	240 mm
Products per master (outer) case	2 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795087677
Country of origin	China
Master (outer) case net weight	5.6 kg
Export Control Classification Number (ECCN)	EAR99
