JDSH814 8K HDMI™ 2.1 4-Way Splitter

Key Features

• Allows you to mirror up to 4 displays at up to 8K@60Hz/4K@120Hz resolution.
• Support Variable Refresh Rate (VRR), FreeSync™, G-Sync™, and Auto Low Latency Mode (ALLM)
• Support audio formate: 2-Channel Audio, DTS-HD, Dolby®-True HD, LPCM7.1, DTS, Dolby-AC3, and DSD.
• Support HDCP 1.4/2.2/2.3
• Offers versatile connectivity for a wide range of devices with standard HDMI™ interfaces. PS5™/PS4™, Xbox Series X/Xbox One, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more.
• Allows you to mirror up to 4 displays at up to 8K@60Hz/4K@120Hz resolution.Support Variable Refresh Rate (VRR), FreeSync™, G-Sync™, and Auto Low Latency Mode (ALLM)Support audio formate: 2-Channel Audio, DTS-HD, Dolby®-True HD, LPCM7.1, DTS, Dolby-AC3, and DSD.Support HDCP 1.4/2.2/2.3Offers versatile connectivity for a wide range of devices with standard HDMI™ interfaces. PS5™/PS4™, Xbox Series X/Xbox One, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more.

Description

The 8K HDMI™ 2.1 4-Way Splitter out allows you to mirror up to 4 displays. The HDMI™ ports offer versatile connectivity options for a wide range of devices with HDMI™ interfaces. Compatible with PS5™/PS4™, Xbox Series X™/Xbox One™, desktops, laptops, Blu-ray™ DVD player, Chromecast™, and more. It supports impressive resolutions up to 8K@60Hz, 4K@120Hz, and is backward compatible with 1440p@240Hz,1080p @ 240 Hz. Works with TVs, monitors, projectors, and other displays.
Plug-and-play, makes it effortless to toggle between input sources or displays without drivers.

Specifications

Ports & interfaces
Video ports quantity	4
Video port type	HDMI
Video out	4x HDMI
Features
LED indicators	Yes
Housing material	Aluminium
Maximum refresh rate	240 Hz
Dolby technologies	Dolby Digital AC3, DTS-HD
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Product colour	Grey
HD type	8K Ultra HD
Number of displays supported	2
HDCP version	1.4/2.2/2.3
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
High Dynamic Range (HDR) supported	Yes
Country of origin	Taiwan
Weight & dimensions
Weight	255.5 g
Width	68.4 mm
Depth	168 mm
Height	18 mm
Package weight	343.5 g
Package depth	125 mm
Package width	193 mm
Package height	25 mm
Packaging data
Package weight	343.5 g
Package depth	125 mm
Package width	193 mm
Package height	25 mm
Quantity per pack	1 pc(s)
Packaging content

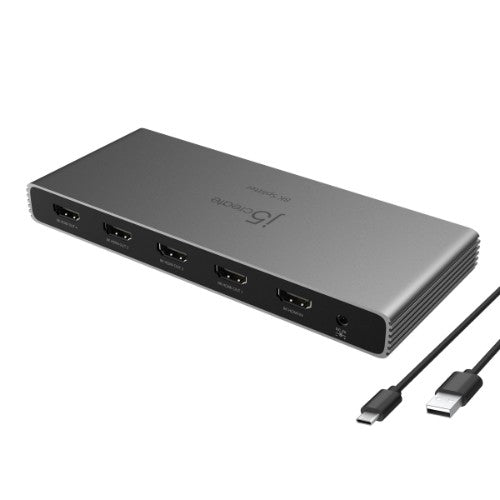

Packaging content	1 - 8K HDMI™ 2.1 4-Way Splitter (JDSH814) 1 - DC to USB™ Type-A cable included (150 cm/ 4.92 ft.) 1 - Quick Installation Guide (QI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Video
Maximum refresh rate	240 Hz
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Colour
Product colour	Grey
Indication
LED indicators	Yes
Technical details
Housing material	Aluminium
Dolby technologies	Dolby Digital AC3, DTS-HD
Package width	193 mm
Package height	25 mm
Video out	4x HDMI
Warranty period	2 year(s)
Logistics data
Quantity per pack	1 pc(s)
Products per master (outer) case	18 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088797
Shipping (inner) case width	16.5 cm
Shipping (inner) case length	21.2 cm
Shipping (inner) case height	13.7 cm
Products per shipping (inner) case	3 pc(s)
Country of origin	Taiwan
Export Control Classification Number (ECCN)	EAR99
