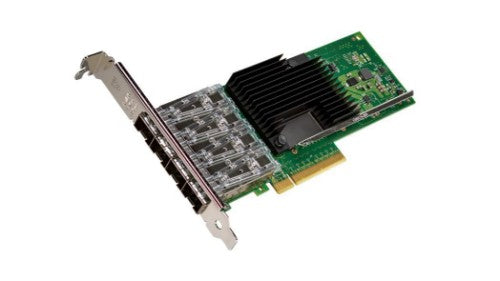

Intel Ethernet Converged Network Adapter X710DA4 (Low profile)

Description

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	4
Fiber optic connector	SFP+
Ethernet LAN (RJ-45) ports	4
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Data transfer rate	8 GT/s
Maximum data transfer rate	10000 Mbit/s
Network
Data transfer rate	8 GT/s
Ethernet interface type	Gigabit Ethernet, 10 Gigabit Ethernet
iSCSI support	Yes
Quality of Service (QoS) support	Yes
Maximum operating distance	10 m
LAN controller	Intel® XL710-BM1
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-SR
Ethernet LAN data rates	1000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Antenna
Quality of Service (QoS) support	Yes
Technical details
Quality of Service (QoS) support	Yes
Interface type	PCIe v3.0 (8.0 GT/s)
Product colour	Black, Green, Stainless steel
Storage-over-ethernet	Yes
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	No
Embedded options available	No
Storage Over Ethernet	iSCSI NFS
Export Control Classification Number (ECCN)	5A991
Quantity per pack	1 pc(s)
Product type	Network Interface Card
Status	Launched
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q4'14
Design
Product colour	Black, Green, Stainless steel
Certification	FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Internal	Yes
LED indicators	Yes
Component for	Server/workstation
Conflict-Free	Yes
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	167 mm
Depth	69 mm
Packaging data
Quantity per pack	1 pc(s)
Performance
Conflict-Free	Yes
Storage-over-ethernet	Yes
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	No
Certificates
Certification	FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Other features
Conflict-Free	Yes
Data transfer rate	8 GT/s
Product type	Network Interface Card
Interface type	PCIe v3.0 (8.0 GT/s)
Cable type	SFP+ Direct Attached Twin Axial Cabling up to 10m
Storage-over-ethernet	Yes
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	No
Embedded options available	No
Storage Over Ethernet	iSCSI NFS
Status	Launched
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q4'14
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
Export Control Classification Number (ECCN)	5A991
Controller type	Intel® Ethernet Controller X710
Cabling type	SFP+ Direct Attached Twin Axial Cabling up to 10m
Quantity per pack	1 pc(s)
Bracket height	Low-Profile (LP)
Target market	Artificial Intelligence, High Performance Computing
