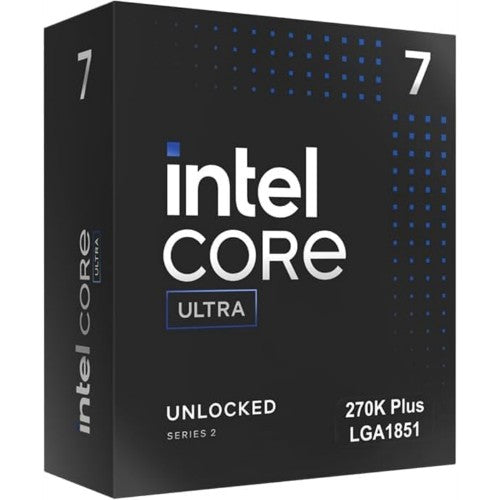

Intel Core Ultra 7 270K Plus processor 36 MB Smart Cache Box

Intel Core Ultra 7 270K Plus processor 36 MB Smart Cache Box

£399.59
Skip to product information
Intel Core Ultra 7 270K Plus processor 36 MB Smart Cache Box
1/7

SKU: BX80768270K

Intel Core Ultra 7 270K Plus processor 36 MB Smart Cache Box

£399.59
Description
Boxed Intel Core Ultra 7 processor 270K Plus (36M Cache, up to 5.50 GHz) FCLGA18W

Description

Next-Generation 24-Core Performance
The Intel Core Ultra 7 270K Plus delivers exceptional desktop computing power with a 24-core hybrid architecture featuring 8 Performance-cores and 16 Efficient-cores. Designed to handle demanding gaming, content creation, streaming, and professional workloads simultaneously, it provides outstanding multitasking capability and responsiveness.

Unlocked for Advanced Overclocking
Built for enthusiasts and power users, the Core Ultra 7 270K Plus features an unlocked multiplier that enables advanced tuning and overclocking. Users can maximize performance potential while optimizing system settings for gaming, creative applications, and intensive productivity tasks.

Boost Speeds Up to 5.5GHz
With turbo frequencies reaching up to 5.5GHz, the processor delivers rapid execution of demanding applications and high frame rates in modern games. The combination of high clock speeds and intelligent workload management ensures smooth and responsive performance across a wide range of computing scenarios.

Advanced Arrow Lake Architecture
Powered by Intel's Arrow Lake Refresh architecture, the Core Ultra 7 270K Plus introduces enhanced efficiency, improved gaming performance, and optimized multi-threaded processing. Architectural refinements help deliver greater performance while maintaining efficient power utilization.

Integrated AI Acceleration
A built-in Neural Processing Unit (NPU) accelerates AI-enhanced workloads directly on the processor. This dedicated AI engine improves performance for intelligent productivity tools, content enhancement applications, and emerging AI-powered software while reducing demands on the CPU and graphics subsystem.

DDR5 Memory and PCIe 5.0 Support
Designed for modern high-performance systems, the processor supports high-speed DDR5 memory and PCIe 5.0 connectivity. These technologies provide increased bandwidth for next-generation graphics cards, ultra-fast storage devices, and memory-intensive applications.

LGA 1851 Platform Compatibility
The Core Ultra 7 270K Plus utilizes the LGA 1851 socket and is compatible with Intel 800 Series chipset motherboards. This platform provides access to the latest connectivity technologies, expansion capabilities, and performance-focused features for future-ready PC builds.

Large Cache for Faster Data Access
Equipped with 40MB of L2 cache and 36MB of Intel Smart Cache, the processor reduces data access latency and improves overall system responsiveness. Large cache resources help accelerate gaming, content creation, and professional workloads that rely on rapid data processing.

Integrated Graphics for Everyday Computing
Built-in Intel Graphics provide reliable visual performance without requiring a dedicated graphics card. The integrated GPU supports everyday computing, media playback, productivity applications, and troubleshooting during system setup or upgrades.

Built for Gaming, Creating, and Productivity
Whether gaming at high refresh rates, editing large media projects, streaming content, or managing complex workloads, the Intel Core Ultra 7 270K Plus offers the balanced performance, efficiency, and advanced features required by modern PC enthusiasts and professionals.

Specifications

Processor
Processor generation Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor codename Arrow Lake
Processor cache 36 MB
Processor ARK ID 245692
Processor model 270K Plus
Processor threads 24
Processor operating modes 64-bit
Processor boost frequency 5.5 GHz
Processor family Intel Core Ultra 7
Processor cores 24
Processor socket LGA 1851 (Socket V1)
Processor cache type Smart Cache
Package type Box
Performance cores 8
Efficient cores 16
Performance-core boost frequency 5.4 GHz
Performance-core base frequency 3.7 GHz
Efficient-core boost frequency 4.7 GHz
Efficient-core base frequency 3.2 GHz
Processor base power 125 W
Maximum turbo power 250 W
Maximum number of DMI lanes 8
Low Power Efficient-cores 0
AI software frameworks supported by CPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU) Intel AI Boost
Sparsity support Yes
Windows Studio effects support Yes
AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to 36 TOPs
NPU performance up to 13 TOPs
GPU performance up to 8 TOPs
Memory
Maximum internal memory supported by processor 256 GB
Memory types supported by processor DDR5-SDRAM
Memory channels Dual-channel
ECC Yes
Graphics
Discrete graphics card No
On-board graphics card maximum resolution (DisplayPort) 7680 x 4320 pixels
On-board graphics card ID 0x7D67
On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 120 Hz
Number of displays supported (on-board graphics) 4
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card model Intel® Graphics
On-board graphics card Yes
On-board graphics card dynamic frequency (max) 2000 MHz
On-board graphics card base frequency 300 MHz
Discrete graphics card model Not available
Hardware encode/decode codecs supported H.264, H.265 (HEVC)
Xe-cores 4
AI software frameworks supported by GPU DirectML, OpenVINO, Windows ML, ONNX RT, WebGPU
AV1 encode/decode Yes
Technical details
Thermal solution specification PCG 2020A
Intel® Active Management Technology (Intel® AMT) Yes
Intel® Secure Key Yes
Thermal Monitoring Technologies Yes
Intel® Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel® Quick Sync Video Technology Yes
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® AES New Instructions (Intel® AES-NI) Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
PCI Express slots version 4.0, 5.0
Supported instruction sets AVX 2.0, SSE4.1, SSE4.2
Scalability 1S
L2 cache 40960 KB
Intel VT-x with Extended Page Tables (EPT) Yes
Embedded options available No
Graphics output eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Status Launched
Market segment Desktop
Launch date Q1'26
Intel Virtualization Technology (VT-x) Yes
Processor cache type Smart Cache
OpenCL version 3.0
Features
On-board graphics card ID 0x7D67
Maximum number of PCI Express lanes 24
Processor package size 45 x 37.5 mm
Processor ARK ID 245692
Thermal solution specification PCG 2020A
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
PCI Express slots version 4.0, 5.0
Supported instruction sets AVX 2.0, SSE4.1, SSE4.2
Scalability 1S
Embedded options available No
Market segment Desktop
Use conditions Workstation, PC/Client/Tablet
Direct Media Interface (DMI) Revision 4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Intel Turbo Boost Max Technology 3.0 Yes
Intel® Speed Shift Technology Yes
Intel® OS Guard Yes
Intel® Active Management Technology (Intel® AMT) Yes
Intel® Secure Key Yes
Intel® Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel® Quick Sync Video Technology Yes
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® AES New Instructions (Intel® AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology (VT-x) Yes
Intel® Boot Guard Yes
Intel® Volume Management Device (VMD) Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Mode-based Execute Control (MBE) Yes
Intel® vPro™ Platform Eligibility Yes
Intel® Turbo Boost Max Technology 3.0 frequency 5.5 GHz
Intel® Thunderbolt 4 Yes
Intel® Control-flow Enforcement Technology (CET) Yes
Intel® Thread Director Yes
Intel® Total Memory Encryption - Multi Key Yes
Intel® Threat Detection Technology (TDT) Yes
Intel vPro® Essentials Platform Eligibility Yes
Intel vPro® Enterprise Platform Eligibility Yes
Intel® Standard Manageability (ISM) Yes
Intel® Stable IT Platform Program (SIPP) Yes
Intel® One-Click Recovery Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) Yes
Intel® Remote Platform Erase (RPE) Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes
Operational conditions
Maximum operating temperature 105 °C
Packaging data
Package type Box
Weight & dimensions
Processor package size 45 x 37.5 mm
Other features
Maximum internal memory 256 GB
L2 cache 40960 KB
Graphics output eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
