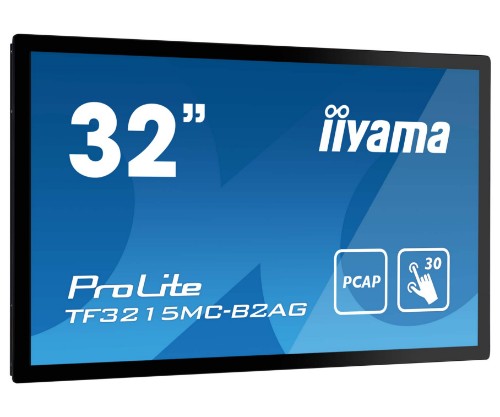

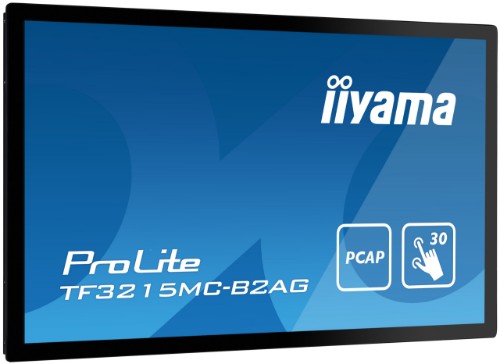

Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

Reasons To Buy

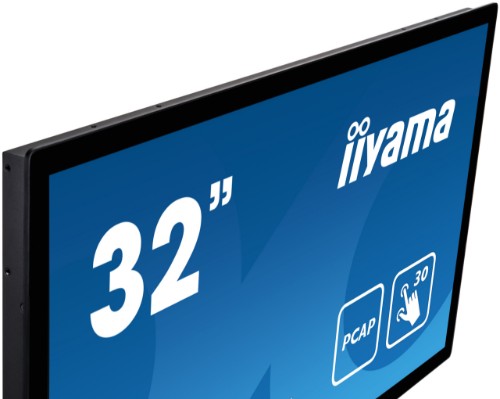

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

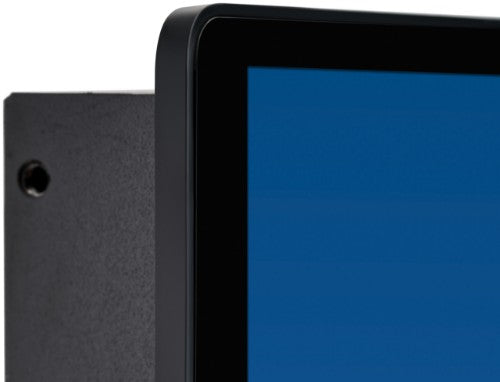

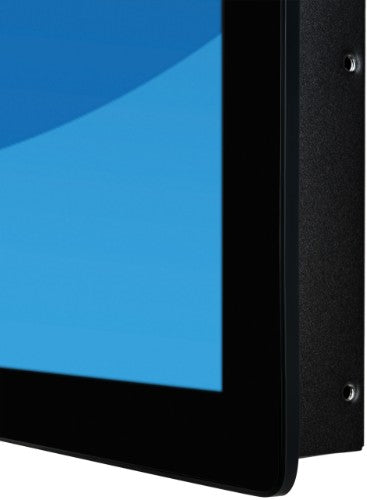

Foam Seal

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

Ball-drop-test proof

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

24/7

24/7 displays are designed for a continuous operation.

Description

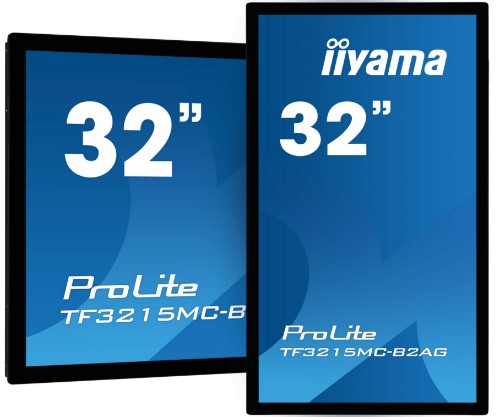

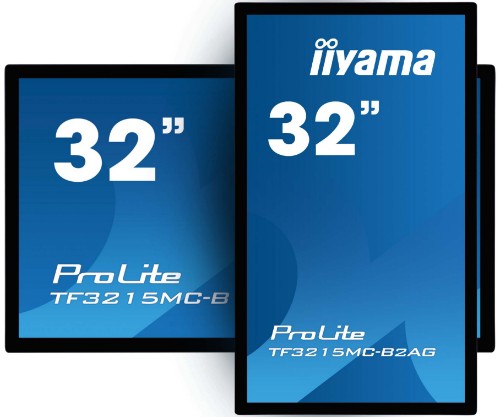

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Specifications

Display
HDCP	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.3637 x 0.3637 mm
Horizontal scan range	30 - 68 kHz
Viewable size, horizontal	69.8 cm
Viewable size, vertical	39.3 cm
Digital horizontal frequency	30 - 68 kHz
Display resolution	1920 x 1080 pixels
Response time	8 ms
Display diagonal	80 cm (31.5")
Contrast ratio (typical)	3000:1
Surface hardness	6H
Touchscreen type	Kiosk
Touchscreen	Yes
Number of simultaneous touchpoints	30
Panel type	VA
Colour depth	8 bit
Display diagonal (metric)	80 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Display brightness	425 cd/m²
Positional accuracy	2 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
Mean time between failures (MTBF)	50000 h
AMD FreeSync	No
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
NVIDIA G-SYNC	No
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	7
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play	Yes
Design
Market positioning	Business
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Housing material	Metal
Glass thickness	6 mm
IK code	IK07
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
USB Touch port	Yes
Technical details
Height (without stand)	437 mm
Depth (without stand)	61 mm
Width (without stand)	745.5 mm
Mean time between failures (MTBF)	50000 h
HDMI	Yes
Product colour	Black
User controls	contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass)
Products per pallet	21 pc(s)
Front bezel colour	Black
Pallet net width	100 cm
Pallet net height	2.04 m
Pallet net length	120 cm
Compliance certificates	REACH
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	425 cd/m²
Power supply type	Internal
Active display area (W x H)	698.4 x 392.8 mm
Weight (with stand)	10 kg
Touch method	finger, glove (latex), capacitive stylus
Surface hardness	6H
Touchscreen type	Kiosk
Touchscreen	Yes
Number of simultaneous touchpoints	30
Ergonomics
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
On Screen Display (OSD)	Yes
Number of OSD languages	7
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play	Yes
Cable management	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	1.5 W
Power consumption (typical)	32 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	27.4 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Height (without stand)	437 mm
Depth (without stand)	61 mm
Width (without stand)	745.5 mm
Width (with stand)	743 mm
Depth (with stand)	61 mm
Height (with stand)	437 mm
Weight (with stand)	10 kg
Weight (without stand)	10 kg
Package width	890 mm
Package depth	155 mm
Package height	630 mm
Package weight	12.8 kg
Width	743 mm
Weight	10 kg
Height	437 mm
Depth	61 mm
Packaging data
Package width	890 mm
Package depth	155 mm
Package height	630 mm
Package weight	12.8 kg
Quick start guide	Yes
Cables included	AC, USB, HDMI
Packaging content
Quick start guide	Yes
Cables included	AC, USB, HDMI
Other features
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	425 cd/m²
Active display area (W x H)	698.4 x 392.8 mm
Mean time between failures (MTBF)	50000 h
User controls	contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass)
Touch method	finger, glove (latex), capacitive stylus
International Protection (IP) code	IP65
Width	743 mm
Weight	10 kg
Height	437 mm
Depth	61 mm
IK code	IK07
Positional accuracy	2 mm
Compliance certificates	REACH
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Height (without stand)	437 mm
Depth (without stand)	61 mm
Width (without stand)	745.5 mm
Quick start guide	Yes
HDMI	Yes
Surface hardness	6H
Energy efficiency scale	A to G
Power supply type	Internal
Touchscreen type	Kiosk
Touchscreen	Yes
Number of simultaneous touchpoints	30
Products per pallet	21 pc(s)
Front bezel colour	Black
Logistics data
Products per pallet	21 pc(s)
Pallet net width	100 cm
Pallet net height	2.04 m
Pallet net length	120 cm
