27” Optical Bonded PCAP 10pt touchscreen monitor with IPS panel technology, edge-to-edge glass design and anti-fingerprint coating

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS Technology

Ensure perfect visibility from any position - The IPS panel delivers vivid, consistent colors and wide viewing angles, ideal for dynamic retail environments and busy commercial spaces.

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

Scratch resistance

Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.

Speakers

This LED monitor is equipped with two stereo speakers.

Description

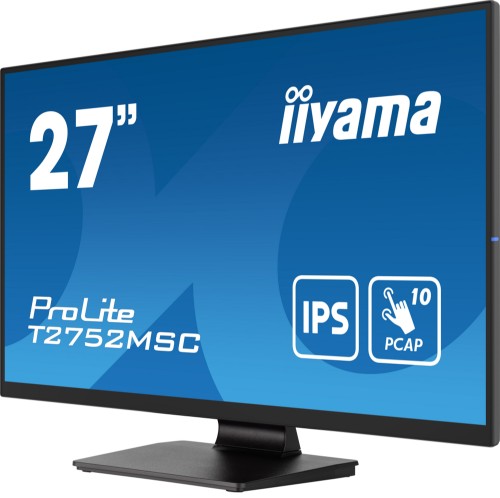

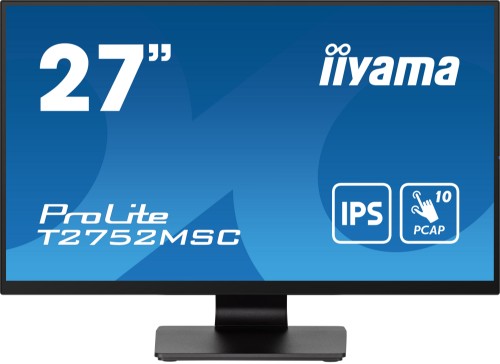

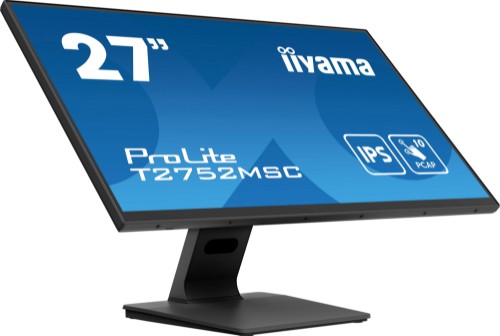

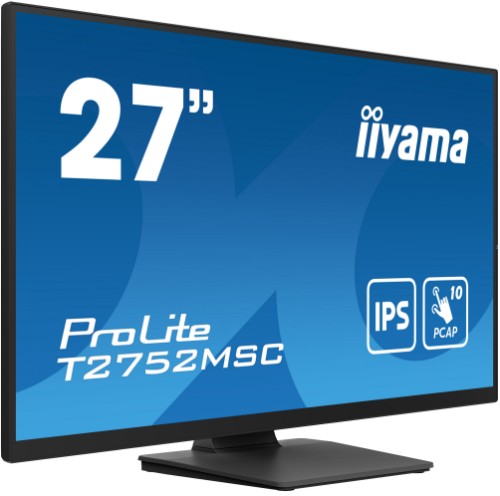

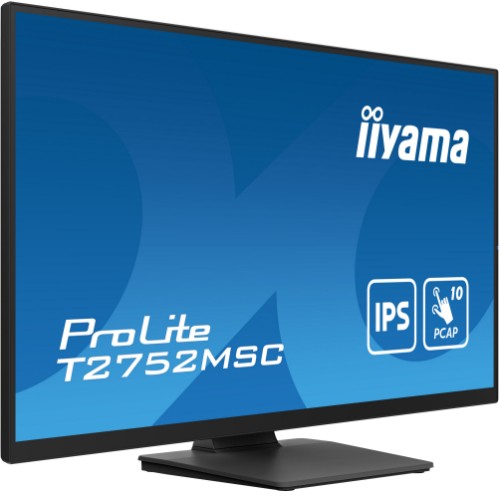

The ProLite T2752MSC-B1 with its Full HD (1920x1080) resolution and with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. he flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. A perfect choice for a vast array of applications.

Specifications

Display
HDCP	Yes
Display brightness (typical)	400 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.311 x 0.311 mm
Horizontal scan range	30 - 83 kHz
Aspect ratio	16:9
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	68.6 cm (27")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Display brightness (peak)	400 cd/m²
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	68.6 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Display brightness	360 cd/m²
Positional accuracy	2 mm
Response time measurement type	GTG (Gray to Gray)
Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
Mean time between failures (MTBF)	50000 h
Built-in camera	No
AMD FreeSync	No
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
NVIDIA G-SYNC	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Palm rejection	Yes
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	10
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Plug and Play	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No
Design
Market positioning	Business
Certification	CE, TÜV-Bauart, ErP, CU
Product colour	Black
Front bezel colour	Black
Glass thickness	2.2 mm
Mean time between failures (MTBF)	50000 h
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	1
USB Type-A downstream ports quantity	3
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Audio output	Yes
HDMI	Yes
USB Touch port	Yes
Number of downstream ports	2
Ethernet LAN	No
Technical details
Cable lock slot	Yes
Mean time between failures (MTBF)	50000 h
HDMI	Yes
Product colour	Black
User controls	Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Front bezel colour	Black
Sustainability certificates	ErP
Compliance certificates	CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	360 cd/m²
Power supply type	Internal
Active display area (W x H)	598 x 336 mm
Weight (with stand)	6.7 kg
Touch method	stylus, finger, glove (latex)
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Network
Ethernet LAN	No
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Yes
Tilt angle range	5 - 90°
On Screen Display (OSD)	Yes
Number of OSD languages	10
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Plug and Play	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	1.5 W
Power consumption (typical)	21 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20.6 kWh
Weight & dimensions
Width (with stand)	614 mm
Depth (with stand)	239.5 mm
Height (with stand)	403 mm
Weight (with stand)	6.7 kg
Package width	710 mm
Package depth	160 mm
Package height	465 mm
Package weight	8.4 kg
Width	614 mm
Weight	6.7 kg
Height	403 mm
Depth	239.5 mm
Packaging data
Package width	710 mm
Package depth	160 mm
Package height	465 mm
Package weight	8.4 kg
Quick start guide	Yes
Cables included	AC, USB, HDMI
Packaging content
Quick start guide	Yes
Cables included	AC, USB, HDMI
Indication
LED indicators	Yes
Sustainability
Sustainability certificates	ErP
Other features
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	360 cd/m²
Active display area (W x H)	598 x 336 mm
USB ports quantity	2
Mean time between failures (MTBF)	50000 h
Certification	CE, TÜV-Bauart, ErP, CU
User controls	Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method	stylus, finger, glove (latex)
Width	614 mm
Weight	6.7 kg
Height	403 mm
Depth	239.5 mm
Positional accuracy	2 mm
Compliance certificates	CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Control panel	Press/enter, right/volume, left/eco/exit, up/signal select, down, power
Supplied AC adapter type	AC
Quick start guide	Yes
HDMI	Yes
Surface hardness	7H
Energy efficiency scale	A to G
Power supply type	Internal
Ethernet LAN	No
Display brightness (peak)	400 cd/m²
Touchscreen	Yes
Number of simultaneous touchpoints	10
Front bezel colour	Black
Certificates
Certification	CE, TÜV-Bauart, ErP, CU
Logistics data
Harmonized System (HS) code	85285210
