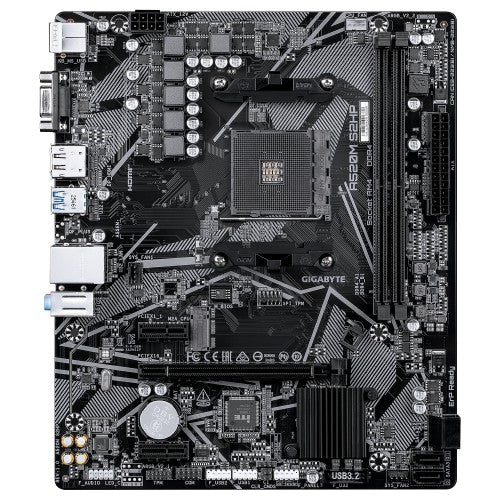

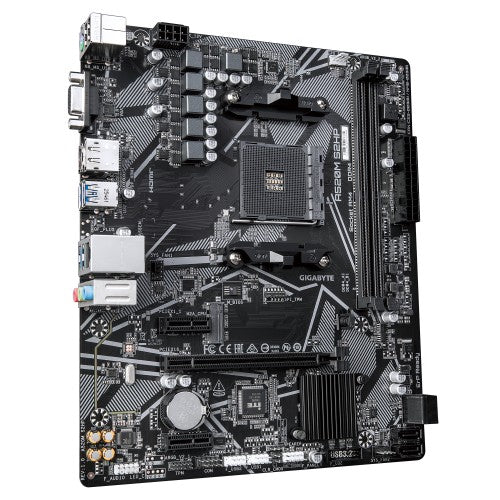

AMD Ryzen 5000 Series AM4 CPUs, 4+2 Phases Hybrid Digital VRM, up to 3200MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• Fast Networks: GbE LAN
• HDMI, Display Port, D-sub Ports for Multiple Display
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Power fan connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of chassis fan connectors	2
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
On-board graphics card	No
Motherboard form factor	micro ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4866 MHz
Maximum internal memory	64 GB
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
RAID levels	0, 1, 10
RAID support	Yes
Graphics
On-board graphics card	No
HDCP	Yes

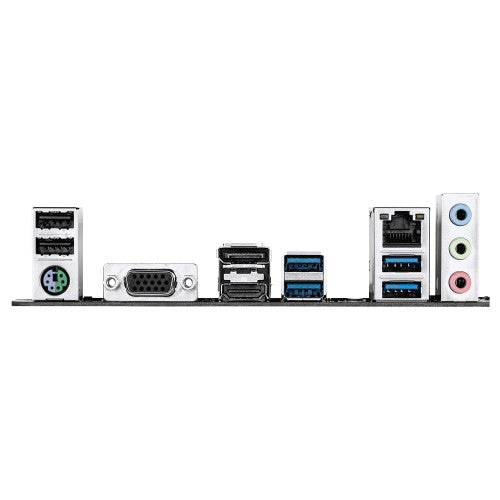

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
HDCP	Yes
Packaging data
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	772 g
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	772 g
Width	244 mm
Depth	205 mm
Packaging content
Batteries included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	772 g
