23.8", 1920 x 1080 (Full HD), IPS, 350 cd/m², 100 Hz, 1500:1, 16.7M, DisplayPort, HDMI, USB

Key Features

• 24"" office monitor in 16:9 format with ergonomic and space-saving design
• DisplayPort and HDMI inputs for digital signal connection
• Contrast ratio 1500:1, brightness 350 cd/m²
• Auto EcoView, EcoView Index, and EcoView Optimizer for maximum energy savings and optimal ergonomics
• USB hub with one upstream and four downstream ports
• 100 Hz refresh rate for clearer movements when scrolling and moving
• Certified environmentally conscious and socially responsible production
• Available in black or white housing color
• 7-year warranty for maximum investment security

Description

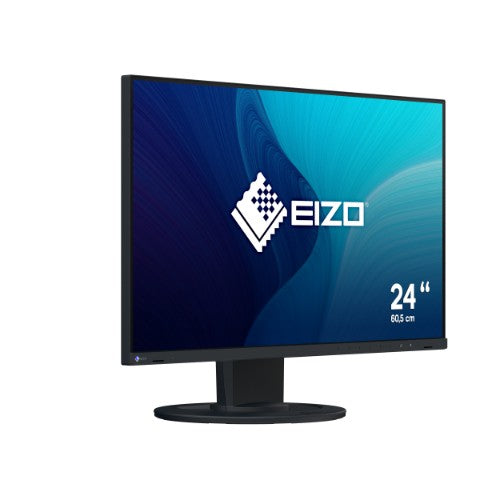

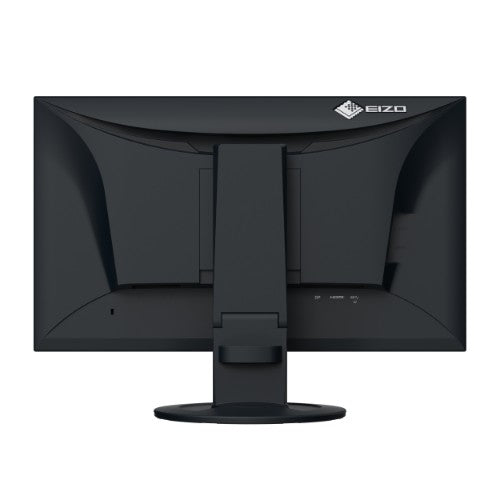

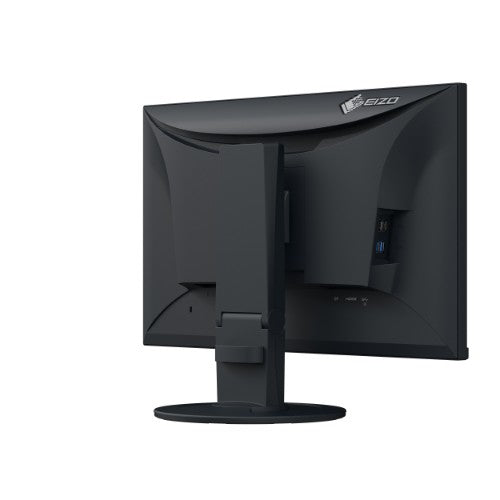

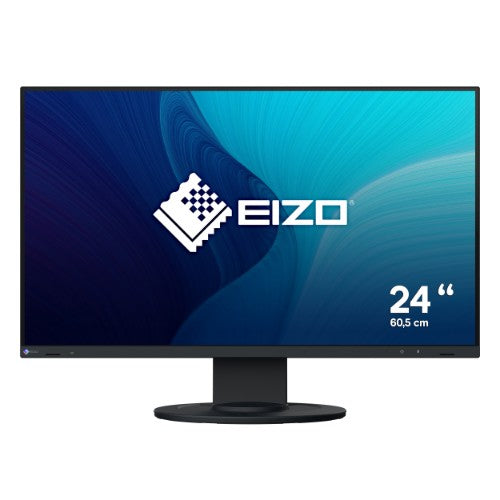

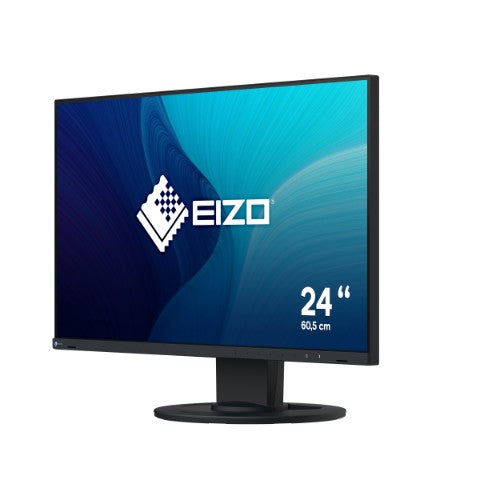

The 23.8-inch EV2400R monitor is specially designed for energy-efficient use in everyday office life and meets both important sustainability requirements and basic workplace needs. It combines the popular 16:9 screen format with advanced energysaving features and typically consumes only 8 watts, which reduces the CO2 footprint and energy costs. Its special Eco Mode activates the Auto EcoView and EcoView Optimizer functions to automatically adjust screen brightness to ambient light and image content, reducing power consumption by up to 60%. The EV2400R is also certified to global sustainability standards and its housing is made from over 50% recycled plastic. With up to 350 cd/m² brightness and 1500:1 contrast, the monitor offers clear image reproduction. It also features eye-friendly features such as anti-glare and flicker-free display. With a 100 Hz refresh rate, moving image content is displayed smoothly. DisplayPort and HDMI inputs, 4 USB downstream ports, and a versatile, ergonomic stand make the EV2400R fully office-ready.

Specifications

Display
HDCP	Yes
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Pixel density	93 ppi
Maximum refresh rate	100 Hz
HD type	Full HD
Display technology	LCD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.275 x 0.275 mm
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	31 - 114 kHz
Digital vertical frequency	59 - 100 Hz
Supported graphics resolutions	1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1280 x 1024 (SXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA)
Backlight type	W-LED
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	60.5 cm (23.8")
Contrast ratio (typical)	1500:1
Touchscreen	No
Panel type	IPS
Display diagonal (metric)	60.5 cm
LED backlight	Yes
Colour gamut standard	sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Flicker-free technology	Yes
Management features
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, French, Italian, Swedish
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No
Design
Market positioning	Office
Feet colour	Black
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified generation 10, TÜV/Low Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018 Gold (US), EPEAT Climate +
Product colour	Black
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
Headphone out	No
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
Number of USB Type-B upstream ports quantity	1
HDCP version	1.3/1.4
Technical details
Height (without stand)	317.5 mm
Depth (without stand)	57 mm
Width (without stand)	537.8 mm
Feet colour	Black
HDMI	Yes
Product colour	Black
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Warranty period	7 year(s)
Compliance certificates	CB, CCC, CE, RoHS, TÜV mark, UKCA, WEEE
Weight (with stand)	5.6 kg
Touchscreen	No
Ergonomics
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt angle range	-5 - 35°
Pivot	Yes
On Screen Display (OSD)	Yes
Pivot angle	-90 - 90°
On Screen Display (OSD) languages	German, English, French, Italian, Swedish
Height adjustment	Yes
Tilt adjustment	Yes
Adjustable height (max)	14 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	43 W
Power consumption (standby)	0.37 W
Power consumption (typical)	8 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	B
Energy consumption (SDR) per 1000 hours	8 kWh
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Height (without stand)	317.5 mm
Depth (without stand)	57 mm
Width (without stand)	537.8 mm
Width (with stand)	537.8 mm
Depth (with stand)	233 mm
Height (with stand)	333.6 mm
Weight (with stand)	5.6 kg
Weight (without stand)	3.5 kg
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B, AC
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Packaging data
Stand included	Yes
Quick start guide	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B, AC
Other features
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified generation 10, TÜV/Low Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018 Gold (US), EPEAT Climate +
Automatic brightness control	Yes
Warranty period	7 year(s)
Look-up table (LUT) bit depth	10
Compliance certificates	CB, CCC, CE, RoHS, TÜV mark, UKCA, WEEE
Height (without stand)	317.5 mm
Depth (without stand)	57 mm
Width (without stand)	537.8 mm
Power consumption (max)	43 W
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
Touchscreen	No
Certificates
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified generation 10, TÜV/Low Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018 Gold (US), EPEAT Climate +
Logistics data
Harmonized System (HS) code	85285210
