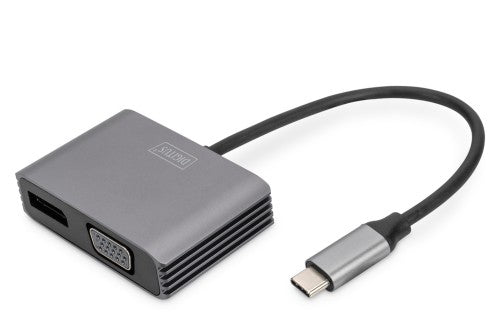

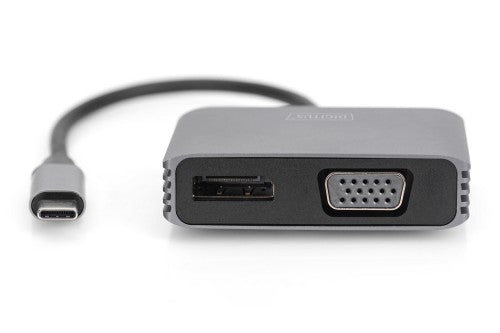

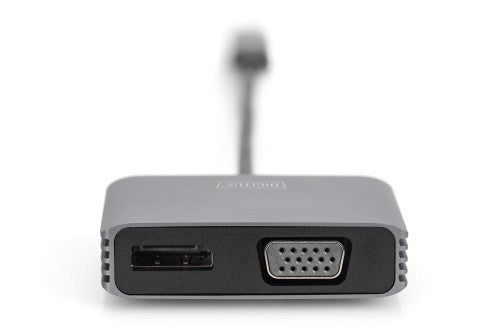

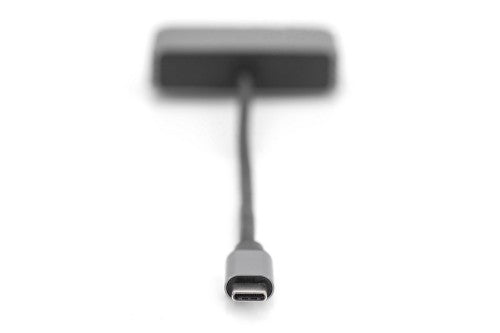

USB-C - DP + VGA Adapter, 20 cm 4K/30Hz, silver, aluminum housing

Key Features

• 4K Ultra HD (UHD) resolution with 4096 x 2160p / 30Hz
• Power supply is provided via the integrated USB-C™ interface on the adapter
• Supports HDCP 2.2
• Supports DisplayPort 1.4
• Supported color depth: 12 bit
• Supports Lip Sync (audio/video synchronization)
• Supports 21:9 Cinemascope
• Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
• Supports DTS
• Supports EDID 1.6 (device recognition)
• Operating humidity: 20% - 80% RH
• Operating temperature: -10°C ~ +50°C
• Supported operating systems: Android 10.0, Chrome OS 86.0, macOS 11.0.1, Windows 8.1, Linux 5.4, iPad Pro (3rd) or higher versions
• Suitable for Pcs or notebooks with USB-C™ port
• High-quality aluminum housing
• Cable adapter length: 20 cm
• Dimensions: L 200 x W 62 x H 15.2 mm
• Weight: 50 g
• Color: Black
• Manufacturer’s notice: The video output capabilities depend on your notebook’s graphic card and the connected monitor. Some screens also limit the available resolution. Your device equipped with USB-C™ must support the DisplayPort™ video mode (DP Alt Mode) in order to be compatible with this adapter/converter.

Description

Transmits video and audio signals from a USB-C™ port to a DisplayPort or VGA interface in resolutions of up to 4K Ultra HD

- Universal USB-C™ Graphics Adapter with DisplayPort and VGA Output
- Full 4K resolution at 30 Hz
- With integrated audio transmission for a Dolby Surround sound experience (except for VGA)
- High-quality aluminum housing
- Power supply is provided via the USB-C™ port
- Plug & Play – no additional driver installation required

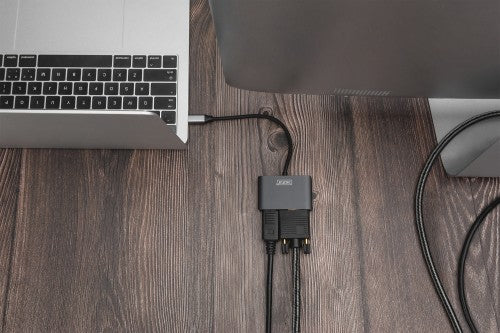

With the DIGITUS® USB-C™ to DisplayPort + VGA Adapter Cable, you can connect a monitor, projector or TV with DisplayPort or VGA connection to the USB-C™ connection of your notebook or tablet. No additional adapters are required. Depending on the source device, this cable supports resolutions of up to 4K / 30 Hz. Thanks to Plug and Play, you don't have to install any drivers or change any settings – Just plug in and get started. You won’t need any additional adapters or converters. Simply use the DIGITUS® adapter cable USB-C™ to DisplayPort + VGA adapter cable.

Specifications

Performance
HDCP	Yes
DisplayPort version	1.4
Maximum resolution	4096 x 2160 pixels
HDCP version	2.2
Design
Product colour	Black
System requirements
Windows operating systems supported	Windows 8.1
Mac operating systems supported	Mac OS X 11.0 Big Sur
Linux operating systems supported	Yes
Other operating systems supported	Android
Weight & dimensions
Width	62 mm
Depth	200 mm
Height	15.2 mm
Weight	50 g
Package width	20 mm
Package depth	150 mm
Package height	80 mm
Package weight	80 g
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Packaging data
Package width	20 mm
Package depth	150 mm
Package height	80 mm
Package weight	80 g
Packaging content
Quantity per pack	1 pc(s)
Packaging content	1 x USB Type-C™ 4K 2-in-1 DisplayPort + VGA Graphics Adapter 1 x QIG
Logistics data
Country of origin	China
Quantity per pack	1 pc(s)
