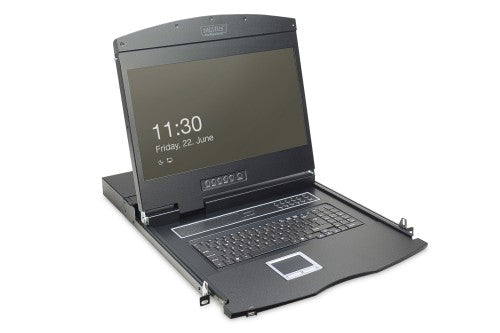

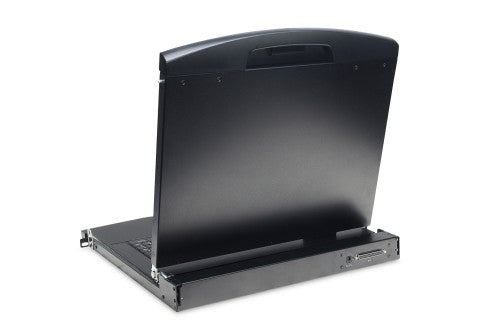

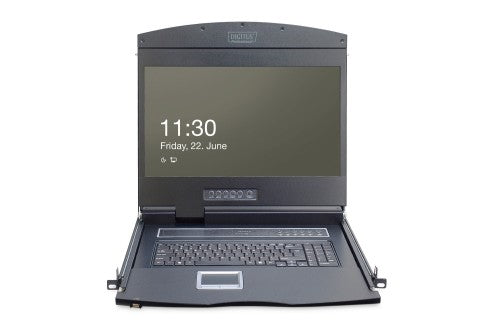

Modularized 48,3cm (19") TFT console with 16 port CAT 5 KVM, US keyboard, RAL 9005 bk

Key Features

• TFT monitor 48.3 cm (19"), with anti-reflective, break-proof protective glass screen
• Resolution: 1366x768 at 60 Hz
• Console creates up to 85% more space
• Contrast ratio: 1000:1
• Supports: 16.7 M colors

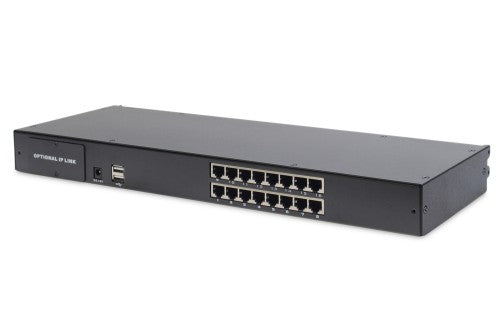

• Including 16-port Cat.5 KVM switch
• Including US keyboard
• Mouse touch-board with two function keys

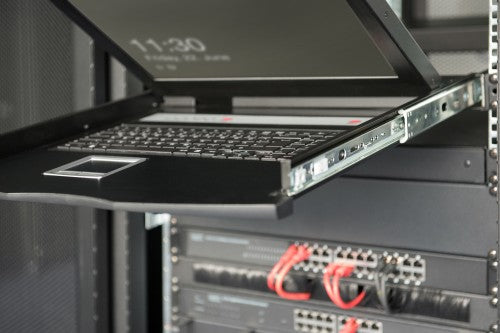

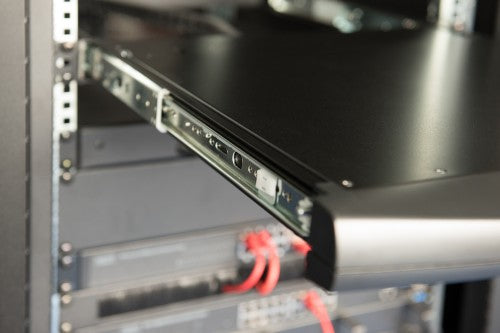

• The console can be completely extracted from the server cabinet, and the TFT screen can be tilted through 120 degrees
• Gross weight: 19,15 kg
• The consoles have safety locking in order to prevent damage
• Space-saving housing (1U), black (RAL 9005)
• 16 x Cat. 5 Dongle

Description

Highest degree of flexibility during the administration of the server farm

- Modular console with 19" TFT (48,3cm), 16-port Cat.5 KVM & Touchpad, US keyboard
- Flexible configuration depending on area of application
- Space-saving casing with 1U design height

Due to its modular design, the DIGITUS® 19" TFT console offers a multitude of individual configuration possibilities, so that it can be adjusted to the area in which the console is being used. As a result, the console is economical and can be upgraded and/or converted at any time with further modules. Due to the flexible configuration, a high level of future security of the console is thus guaranteed. The modular console consists of a 19" monitor, 16-port Cat.5 KVM switch, keyboard and the touchpad.

Specifications

Display
Display number of colours	16.78 million colours
Display type	TFT
Display diagonal	48.3 cm (19")
Display resolution	1366 x 768 pixels
Contrast ratio (typical)	1000:1
Technical details
Country of origin	China
Rack mounting	Yes
Rack capacity	1U
KVM switch ports quantity	16
Product colour	Black
Cables included	KVM
Built-in KVM switch	Yes
Cascading support	Yes
Ports & interfaces
Interface	CAT 5
Keyboard
Keyboard language	US English
Built-in touchpad	Yes
Weight & dimensions
Weight	18.6 kg
Packaging data
Package width	705 mm
Package depth	810 mm
Package height	195 mm
Package volume	111355 cm³
Package weight	23.4 kg
Packaging content
Quick installation guide	Yes
Cables included	KVM
Logistics data
UK Trade Tariff code	84718000
