4xUSB3.0, black

Description

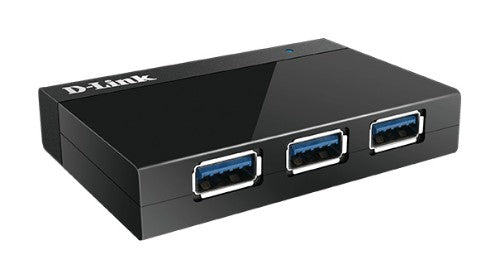

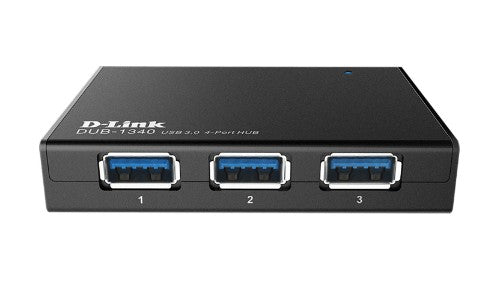

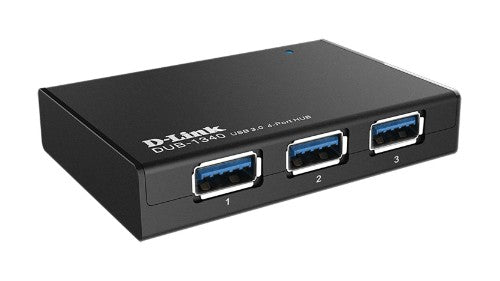

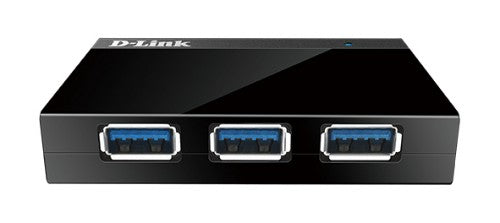

The DUB-1340 4-port USB 3.0 Hub connects the new generation of USB 3.0 devices -such as printers, camcorders and USB Hard Drives- to your computer at the fastest speeds. It comes with its own power supply to provide power to connected USB devices, and is backward compatible with both USB 2.0 and USB 1.0 standards.

USB 3.0 SuperSpeed
D-Link’s DUB-1340 complies with the new USB 3.0 standard, which provides speeds of up to 4.8 Gbps. This is 10 times the speed of the current USB 2.0 standard, and allows you to transfer a High Definition film in around 70 seconds, or 100 images in 1 second.

Compatible with every USB standard
The DUB-1340 works with any USB device and is backward compatible with both USB 1.0 and 2.0 standards. It is also compatible with OHCI (Open Host Controller Interface) and EHCI (Enhanced Host Controller Interface).

Works without external power or with the included power supply
This 4-port USB 3.0 Hub can provide power to connected USB devices (like USB Hard Drives) by means of the included power supply. This is not necessary when the devices connected to the hub don’t need to be powered from the USB port. This feature makes the DUB-1340 a truly portable solution.

Expandable to grow with your needs
The DUB-1340 can be connected in cascade to provide additional USB 3.0 ports. Up to 42 hubs can be connected in daisy-chain configuration with a total number of 127 available ports.

Works on any computer
The DUB-1340 works with any Windows, Mac or Linux system. Your computer will detect the USB hub and install the drivers automatically, so there is no need to carry the drivers on a CD or a memory dongle.

Specifications

Ports & interfaces

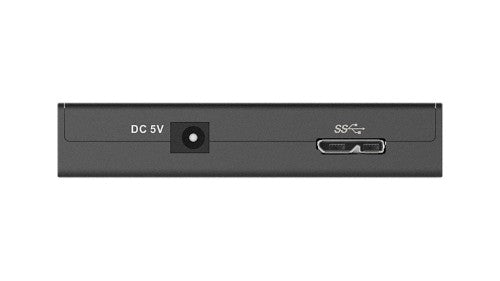

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Micro-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Ports quantity	4
Features
Plug and Play	Yes
Product colour	Black
Certification	CE, FCC
Compatible products	USB 1.0, 1.1, 2.0, 3.0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Micro-B
Power
USB powered	Yes
Output current	4 A
Input voltage	5 V
Technical details
Plug and Play	Yes
Product colour	Black
Products per pallet (sea)	630 pc(s)
Products per pallet (air)	630 pc(s)
Pallet height (sea)	193 cm
Pallet height (air)	193 cm
Pallet gross weight (sea)	324.5 kg
Pallet gross weight (air)	324.5 kg
Master (outer) cases per pallet (sea)	63 pc(s)
Master (outer) cases per pallet (air)	63 pc(s)
Performance
Certification	CE, FCC
Plug and Play	Yes
Compatible products	USB 1.0, 1.1, 2.0, 3.0
Supported data transfer rates	480, 12, 1.5 Mbps
Harmonized System (HS) code	84719000
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Compatible operating systems	Windows XP, Vista, 7 Mac OS X +
Weight & dimensions
Weight	60 g
Width	75 mm
Depth	51 mm
Height	14.5 mm
Package width	150 mm
Package depth	225 mm
Package height	68 mm
Package weight	67 g
Packaging data
Package width	150 mm
Package depth	225 mm
Package height	68 mm
Package weight	67 g
Packaging content
Cables included	USB
AC adapter included	Yes
Design
Product colour	Black
Certification	CE, FCC
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Certificates
Certification	CE, FCC
Logistics data
Shipping (inner) case width	31.4 cm
Shipping (inner) case length	36 cm
Shipping (inner) case height	25.3 cm
Shipping (inner) case gross weight	4.71 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross width	120 cm
Pallet gross length	110 cm
Harmonized System (HS) code	84719000
Shipping (inner) case net weight	2.4 kg
Products per pallet (sea)	630 pc(s)
Products per pallet (air)	630 pc(s)
Pallet height (sea)	193 cm
Pallet height (air)	193 cm
Pallet gross weight (sea)	324.5 kg
Pallet gross weight (air)	324.5 kg
Master (outer) cases per pallet (sea)	63 pc(s)
Master (outer) cases per pallet (air)	63 pc(s)
Other features
Supported data transfer rates	480, 12, 1.5 Mbps
Mac compatibility	Yes
Dimensions (WxDxH)	97.97 x 72.45 x 20.27 mm
Compatible operating systems	Windows XP, Vista, 7 Mac OS X +
Attached USB devices quantity (max)	127
