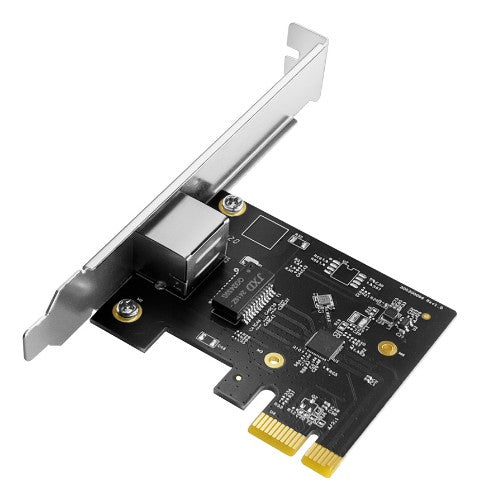

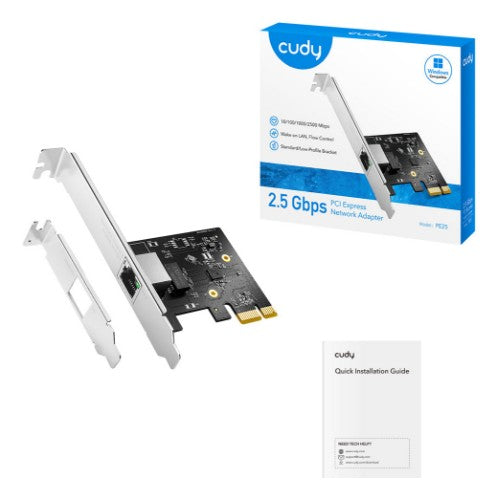

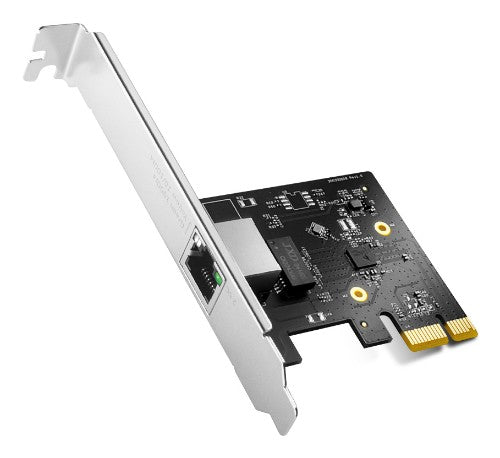

2.5Gbps, PCI Express, Network Adapter, Model: PE25

Key Features

• 10/100/1000/2500 Mbps Ethernet Port
• Wake on LAN, Flow Control
• Standard/Low-Profile Bracket
• Windows, Linux etc

Description

Blazing 2.5G Networking for Peak Performance
Experience ultra-fast 2.5G speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE25 supports auto-negotiation across 10/100/1000/2.5G, delivering reliable, high-performance connectivity for demanding tasks.

Upgrade in One Step to 2.5G Lightning-Fast Network

Requires a PCI-E x4/x8/x16 Slot

Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.

Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.

Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.

Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	2500 Mbit/s
Technical details
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
PCI Card form factor	Full-height (low-profile)
Mean time between failures (MTBF)	376212 h
Network
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Cabling technology	2.5GBase-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
LAN controller	Realtek RTL8125-BG
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Copper ethernet cabling technology	10BASE-T, 1000BASE-TX
Maximum data transfer rate	2500 Mbit/s
Flow control support	Yes
Design
Internal	Yes
PCI Card form factor	Full-height (low-profile)
Mean time between failures (MTBF)	376212 h
LED indicators	Activity, Link, Speed
Component for	PC/Server
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11
Linux operating systems supported	Yes
Indication
LED indicators	Activity, Link, Speed
System requirements
Server operating systems supported	Windows Server 2012, Windows Server 2022
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	64 mm
Depth	56 mm
Height	15 mm
Weight	37.2 g
Packaging data
Low-profile bracket	Yes
Package type	Box
Mounting brackets included	Yes
Quick installation guide	Yes
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Resource CD	Yes
Low-profile bracket	Yes
Package type	Box
Performance
Server operating systems supported	Windows Server 2012, Windows Server 2022
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11
Linux operating systems supported	Yes
Mean time between failures (MTBF)	376212 h
Other features
Flow control support	Yes
