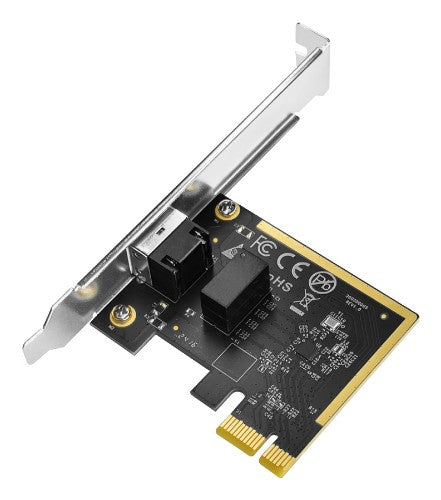

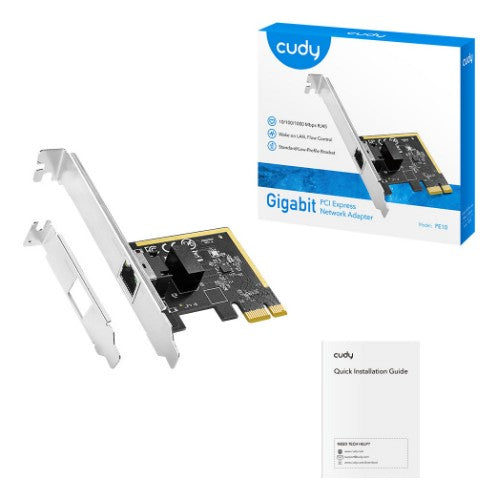

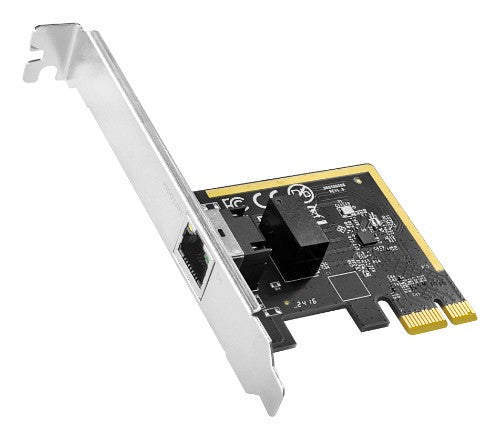

Gigabit PCI Express Network Adapter, 1*10/100/1000Mbps, 12*75*55mm

Key Features

• 10/100/1000 Mbps Ethernet Port
• Wake on LAN, Flow Control
• Standard/Low-Profile Bracket
• Windows XP or later / Linux

Description

Ultra-Fast Gigabit Network for All Applications
Experience ultra-fast gigabit speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE10 ensures reliable, high-performance connectivity with auto-negotiation across 10/100/1000 Mbps for demanding tasks.

Standard/Low-Profile Bracket for different chassis

Compatible with different PCI-E slots

Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.

Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.

Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.

Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.

Specifications

Ports & interfaces
Internal	Yes
USB ports quantity	0
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Technical details
Compatible products	PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X
Products per shipping (inner) case	80 pc(s)
Warranty period	1 year(s)
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Mobile network generation	Not supported
Design
Compatible products	PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X
Internal	Yes
Component for	PC
Software
Windows operating systems supported	Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home
Mac operating systems supported	No
Other operating systems supported	Linux
System requirements
Windows operating systems supported	Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home
Mac operating systems supported	No
Other operating systems supported	Linux
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	64 mm
Depth	56 mm
Height	15 mm
Weight	33.8 g
Package width	140 mm
Package depth	123 mm
Package height	29 mm
Package weight	111.9 g
Packaging data
Package width	140 mm
Package depth	123 mm
Package height	29 mm
Package weight	111.9 g
Mounting brackets included	Yes
Quick start guide	Yes
Manual	Yes
Packaging content
Mounting brackets included	Yes
Manual	Yes
Resource CD	No
Bluetooth header cable	No
Packaging content	PE10 Low-Profile Bracket Installation Guide
Quick start guide	Yes
Performance
Compatible products	PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X
Windows operating systems supported	Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home
Mac operating systems supported	No
Other operating systems supported	Linux
Other features
Manual	Yes
Quick start guide	Yes
Logistics data
Products per shipping (inner) case	80 pc(s)
