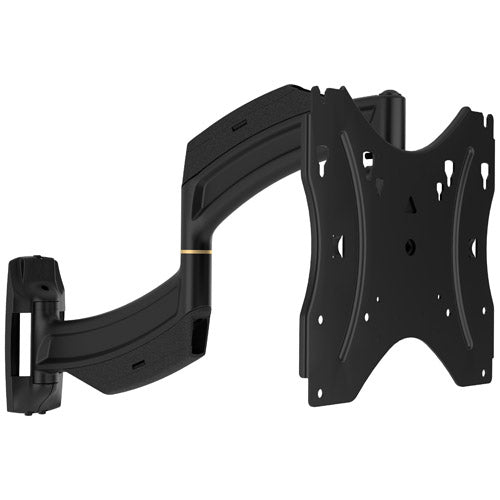

TS118SU, Black, 10 - 32", 35 lbs, Universal

Description

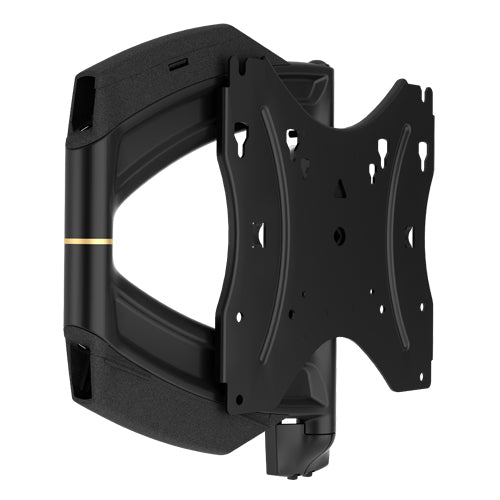

- Ultra Low Profile Sleek design collapses to 1.5” (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	25.4 cm (10")
Panel mounting interface	75 x 75,100 x 100,200 x 200
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Maximum screen size	81.3 cm (32")
Maximum weight capacity	15.9 kg
Ergonomics
Height adjustment	Yes
Cable management	Yes
Tilt angle range	-12 - 0°
Angle of rotation	90°
Number of pivot points	3
Distance to the wall (min)	3.8 cm
Distance to the wall (max)	45.7 cm
Technical details
Cable management	Yes
Angle of rotation	90°
Number of pivot points	3
Number of displays supported	1
Distance to the wall (min)	3.8 cm
Distance to the wall (max)	45.7 cm
Product colour	Black
Mounting type	Wall
Design
Cable management	Yes
Product colour	Black
Housing material	Steel
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	330 mm
Depth	38 mm
Height	294 mm
Depth (max)	45.7 cm
Packaging data
Mounting kit	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Width (imperial)	33 cm (13")
Quantity outer carton	1 pc(s)
Pivot	-90 - 90
Height (imperial)	29.2 cm (11.5")
Depth (imperial)	3.81 cm (1.5")
Screen size compatibility	254 - 812.8 mm (10 - 32")
