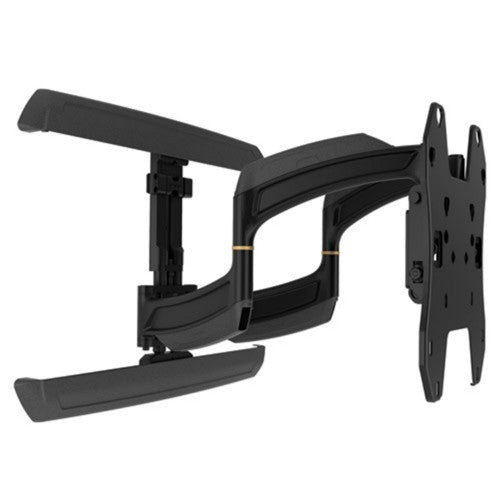

TS318TU, Medium THINSTALL Dual Swing Arm Wall Mount - 18" Extension

Description

A lightweight, low-profile full-motion wall mount for TVs 26-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.

Features

- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

Mounting
Mounting type	Wall
Minimum screen size	66 cm (26")
Panel mounting interface	100 x 100,200 x 200,600 x 400
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	132.1 cm (52")
Maximum weight capacity	34 kg
Ergonomics
Tilt angle range	15 - -15°
Swivel angle range	-90 - 90°
Distance to the wall (min)	12.7 cm
Distance to the wall (max)	46.2 cm
Technical details
Quantity	1
Distance to the wall (min)	12.7 cm
Distance to the wall (max)	46.2 cm
Product colour	Black
Mounting type	Wall
Design
Certification	UL
Product colour	Black
Housing material	Metal
Certificates
Certification	UL
Packaging content
Manual	Yes
Weight & dimensions
Width	574 mm
Depth	33 mm
Height	437 mm
Packaging data
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Quantity	1
Screen size compatibility	660.4 - 1320.8 mm (26 - 52")
