Twin Cantilever Arm Flat Screen Wall Mount with UltraGlide Tilt & Swivel

Key Features

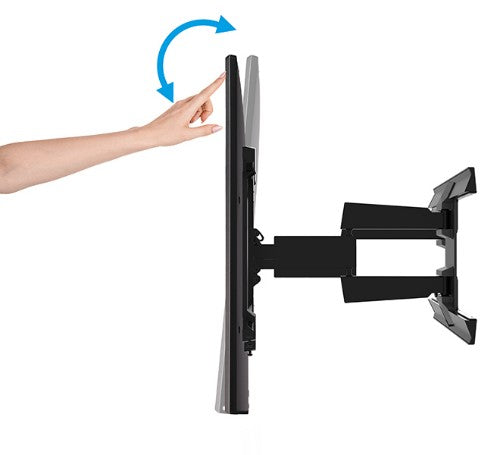

• B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment

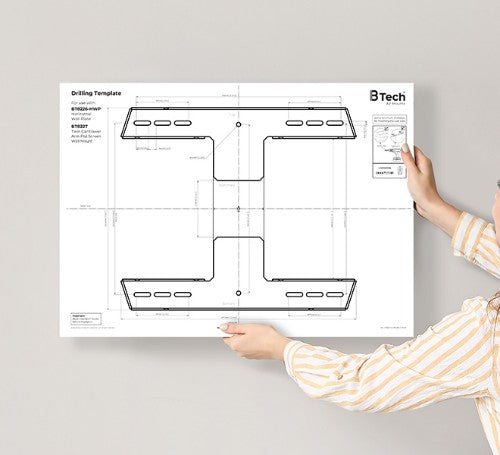

• Printed template for wall drilling makes installation quick and easy

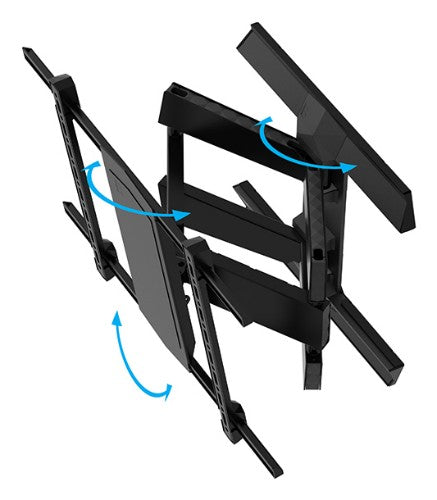

• Swivel points enables quick, smooth screen positioning

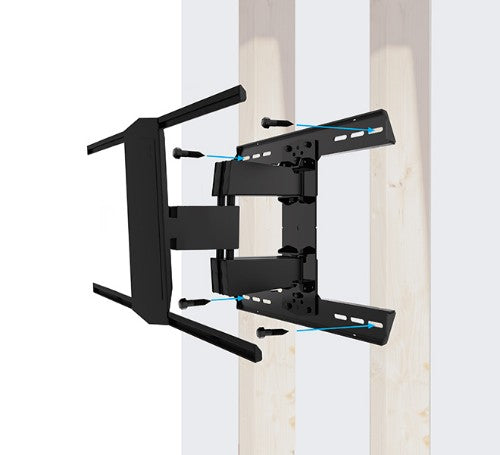

• Ideal for mounting across 16" stud walls
• Integrated cable management throughout the mount
• Suitable for both landscape and portrait mounting
• Tilt can also be fixed at selected angles of -2˚,0˚& 15˚

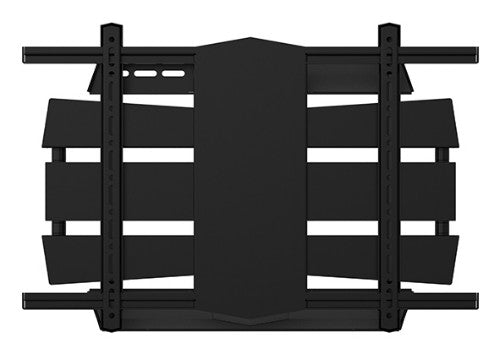

• Slim-line design allows close-to-wall installation when folded flat
• Lateral adjustment of screen after mounting
• Toolless screen levelling

Description

Designed for large screens up to 75", this universal twin-cantilever wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 50kg with a simple touch, securely holding the tilt in place. Featuring swivel points at the wall and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.

Specifications

Mounting
Number of displays supported	1
Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Distance to the wall (min)	6.3 cm
Distance to the wall (max)	58.2 cm
Maximum weight capacity	50 kg
Maximum screen size	190.5 cm (75")
Suitable for TV	Yes
Ergonomics
Cable management	Yes
Swivel angle	180°
Tilt angle range	-3 - 14°
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Orientation	Landscape/Portrait
Technical details
Mounting type	Wall
Distance to the wall (min)	6.3 cm
Distance to the wall (max)	58.2 cm
Product colour	Black
Cable management	Yes
Weight & dimensions
Width	662.6 mm
Depth	582.3 mm
Height	449.6 mm
Packaging content
Mounting kit	Yes
Other features
Mounting type	Wall
