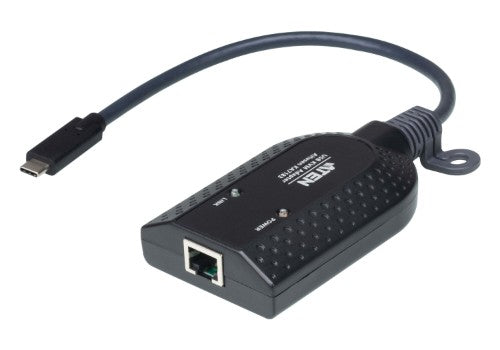

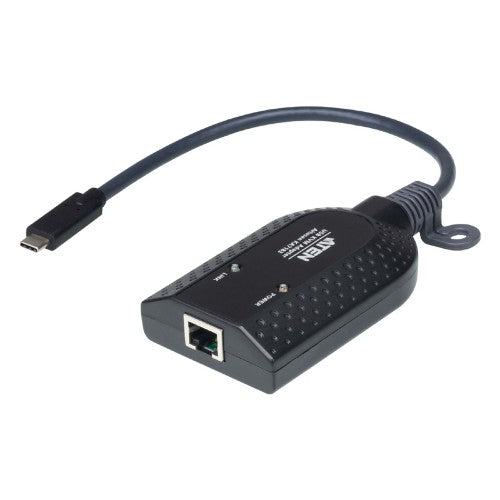

USB-C Virtual Media KVM Adapter

Key Features

• Connects any Cat 5 KVM switch to a target computer via a single USB-C
• Superior video quality – supports Full HD resolution of up to 1920 x 1200
• Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
• Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port

Description

The KA7183 KVM Adapter empowers any Cat 5 KVM switch* to connect to and manage a USB-C compatible target computer. Via just a single USB-C plug, it is able to connect a target computer while fulfilling keyboard, video, mouse, and virtual media or smart card / CAC reader functions.

Advanced features provided by KA7183 include superior signal compensation and delay skew technologies for greatly enhanced video quality, as well as its user-friendly, compact and lightweight design.

Specifications

Ports & interfaces
Internal	No
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	USB Type-C
Connectivity technology	Wired
USB connector form factor	Straight
Technical details
Product colour	Black
Network
Ethernet LAN	Yes
Design
Product colour	Black
Internal	No
LED indicators	Yes
Power
Output voltage	5 V
Power consumption (typical)	2.61 W
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	56 mm
Depth	91 mm
Height	21.2 mm
Weight	70 g
